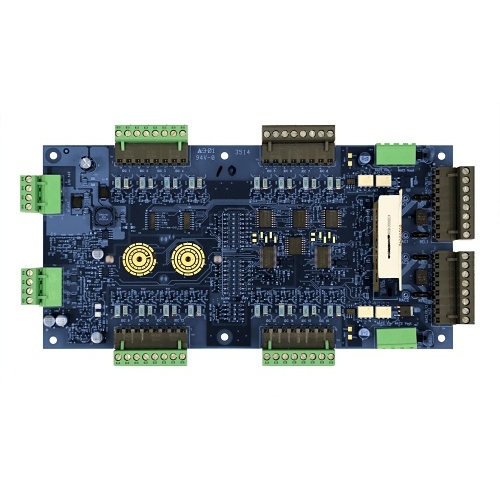

The Edwards RZI16-2 Remote Zone Interface Module is a professional-grade fire alarm system component designed for comprehensive zone monitoring and signal management in complex commercial fire detection networks. This intelligent interface module provides critical connectivity between initiating device circuits (IDCs) and addressable fire alarm control panels, enabling precise zone identification and comprehensive system integration.
Engineered for reliable performance in demanding commercial environments, the RZI16-2 supports up to 16 Class B initiating device circuits with robust supervision and reporting capabilities. Fire alarm contractors and facilities managers will appreciate its flexible architecture, which allows seamless integration with Edwards intelligent network systems and existing fire alarm infrastructure across office buildings, healthcare facilities, educational campuses, and industrial complexes.
Key Features
- 16 supervised Class B initiating device circuits (IDCs) with advanced circuit monitoring
- 2 Class B output circuits for comprehensive system interconnectivity
- Compatible with Edwards addressable fire alarm control panels and network architectures
- Compact design with integrated mounting bracket for simplified installation
- UL 864 and NFPA 72 compliant for mission-critical life safety applications
- Low standby current draw with robust electromagnetic interference (EMI) protection
Specifications
- Operating Voltage: 24VDC nominal
- Maximum Current Consumption: 250mA
- Operating Temperature Range: 32°F to 120°F (0°C to 49°C)
- Relative Humidity: 93% non-condensing
- Dimensions: Compact form factor (exact dimensions to be confirmed with technical documentation)
The RZI16-2 is optimized for integration with Edwards SIGA series intelligent control panels, providing fire alarm professionals with a reliable solution for complex zone monitoring and signal management. Its robust design ensures consistent performance in commercial fire detection and notification systems, meeting the most stringent industry standards for life safety technology.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.8 lbs |
|---|---|
| Dimensions | 14 × 8.5 × 3 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Interface Module |
