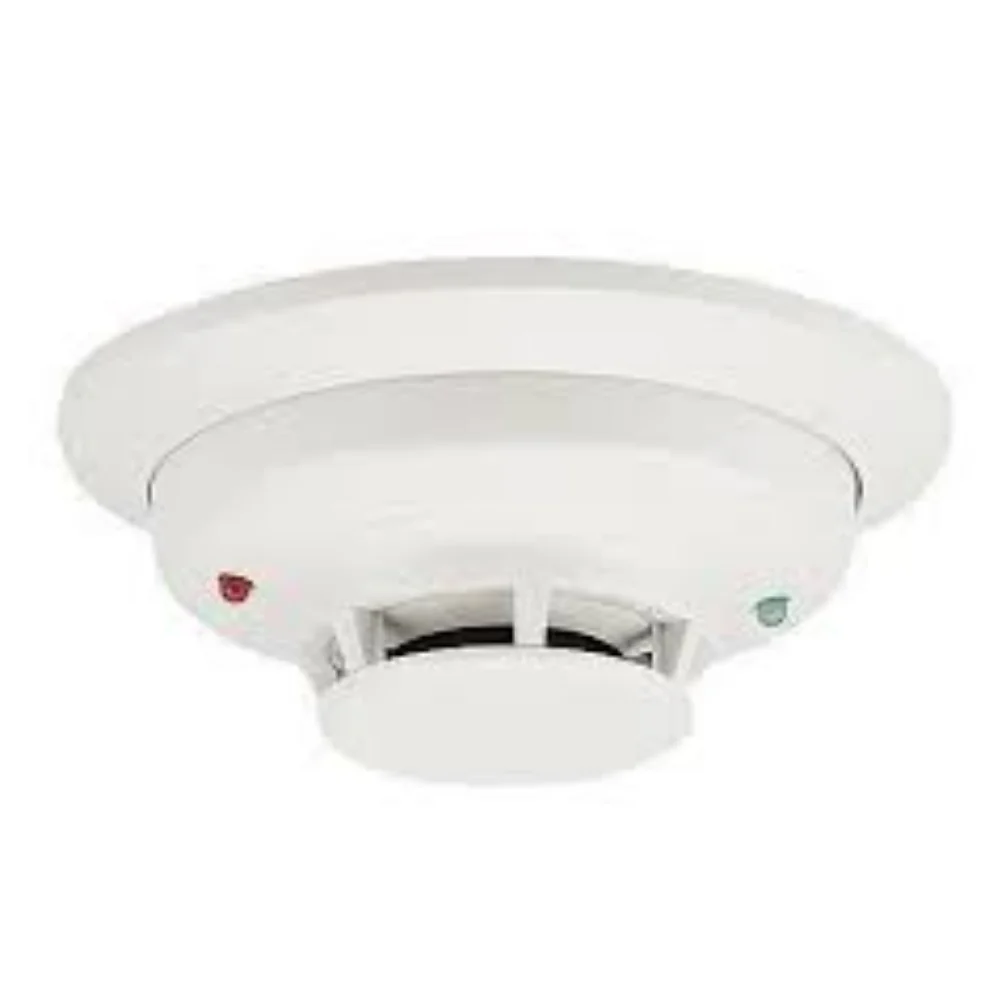

The Fire-Lite (C4WT-BA) 4-wire photoelectric smoke detector represents advanced fire detection technology designed for comprehensive commercial and institutional fire alarm systems. Engineered for reliable performance in addressable notification appliance circuits, this detector provides sophisticated smoke sensing capabilities with integrated thermal detection for enhanced detection accuracy.
Optimized for use with Fire-Lite addressable fire alarm control panels, the C4WT-BA delivers robust environmental monitoring across complex commercial environments including office complexes, educational facilities, healthcare campuses, and industrial settings. Its intelligent photoelectric sensing mechanism enables early-stage smoke detection while minimizing nuisance alarm potential through advanced signal processing algorithms.
Key Features
- Advanced i3 photoelectric sensing technology with integrated thermal sensor for multi-criteria detection
- Compatible with 4-wire addressable fire alarm systems and panels from Fire-Lite and compatible manufacturers
- Built-in sounder for local alarm notification with configurable sound patterns
- Low-profile design supporting direct mounting to standard electrical boxes and ceiling installations
- UL 268 and UL 464 listed for comprehensive compliance with national fire safety standards
- Operating temperature range of 32°F to 100°F with humidity resistance up to 93% non-condensing
Technical Specifications
- Operating Voltage: 15-32 VDC
- Standby Current: 200 µA typical
- Alarm Current: 5-7 mA with integral sounder activated
- Dimensions: 6.25″ diameter, 2.25″ depth
- Agency Listings: CSFM, NYC-MOA, UL
Designed for seamless integration with modern fire alarm infrastructure, the C4WT-BA supports NFPA 72 compliance and provides reliable detection across diverse commercial environments. Its advanced sensing capabilities make it ideal for applications requiring precise smoke detection, including HVAC systems, data centers, educational institutions, and high-traffic commercial facilities.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.07 lbs |
|---|---|
| Condition | New |
| Manufacturers | Fire-Lite |
| Part Type | Photoelectric Smoke Detector |
