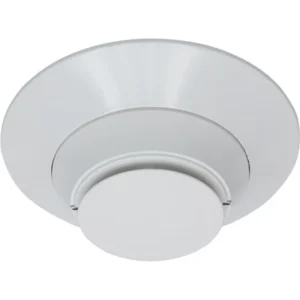

The Fire-Lite SD365T-IV is a sophisticated addressable photoelectric smoke detector engineered for comprehensive fire detection in commercial and institutional environments. Designed with advanced sensing technology, this low-profile detector provides reliable smoke and thermal event monitoring for complex fire alarm systems across multiple application scenarios including office buildings, healthcare facilities, educational campuses, and industrial complexes.
Featuring an ivory-colored housing with an ultra-slim profile, the SD365T-IV integrates seamlessly into modern architectural environments while delivering professional-grade performance. Its addressable architecture enables precise zone identification and pinpoint location reporting, allowing facilities managers and fire protection professionals to rapidly isolate and respond to potential fire risks.
Key Features
- Advanced photoelectric sensing technology with integrated thermal sensor for multi-criteria detection
- Compatible with Fire-Lite addressable control panels and LiteSpeed communication protocols
- Low-profile design with removable base for simplified installation and maintenance
- UL 268 and UL 464 listed for comprehensive safety compliance
- Enhanced signal processing algorithms minimize nuisance alarms
- Operating voltage range of 15-32 VDC with minimal standby current draw
Technical Specifications
- Operating Voltage: 15-32 VDC
- Standby Current: Less than 250 µA
- Alarm Current: Typically 6 mA
- Operating Temperature: 32°F to 100°F (0°C to 38°C)
- Humidity Range: 10% to 93% non-condensing
- Dimensions: 6.0″ diameter, 2.0″ height
Compliant with NFPA 72 National Fire Alarm and Signaling Code, the SD365T-IV is engineered for comprehensive fire detection in addressable notification appliance circuits. Its robust design supports integration with HVAC shutdown systems, elevator recall mechanisms, and comprehensive building management platforms.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.6 lbs |
|---|---|
| Dimensions | 6.5 × 6.5 × 2.5 in |
| Condition | New |
| Manufacturers | Fire-Lite |
| Part Type | Photoelectric Smoke Detector |
