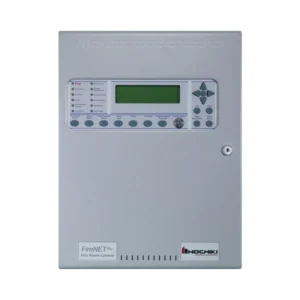

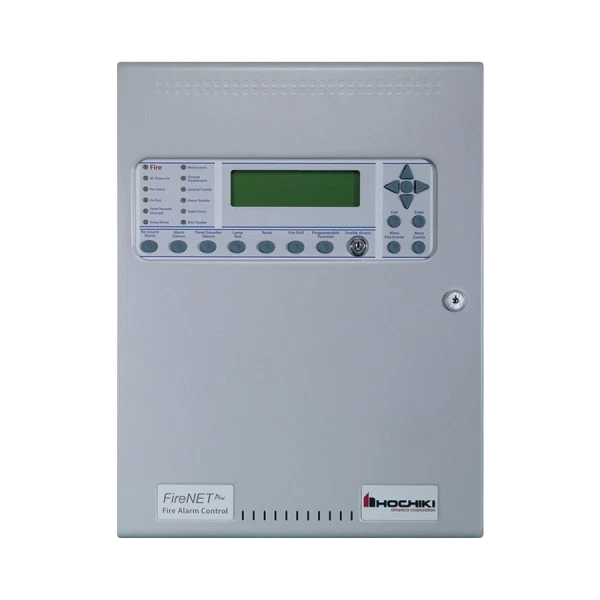

The Hochiki FNP1127US00GS120 is a FireNET Plus analog addressable fire alarm control panel. First, this single-loop model ships in a gray enclosure. In addition, it has no built-in dialer and is the non-expandable build.
Therefore, it suits standalone commercial sites that do not need panel networking. As a result, it is a good fit for offices, schools, healthcare facilities, and light industrial buildings.
Hochiki FNP1127US00GS120 Key Features
- Digitized analog addressable control panel using Hochiki’s DCP protocol
- One SLC loop, supporting up to 127 sensors and modules plus 127 analog sounder bases (254 points total per loop)
- 4-amp integrated power supply
- Two onboard Class B (Style Y) NAC circuits
- Three programmable Form C relays, 1 amp at 30 VDC
- Two auxiliary 24 VDC outputs at 360 mA each
- 8-line x 40-character LCD display
- RS-232 port for PC programming via Loop Explorer software
- Auto-learn feature for quick start-up
- Gentex, System Sensor, Wheelock, and Amseco NAC sync protocols built in
- Seismic certified
Specifications
- Primary AC: 120 VAC @ 2.1 A or 220 VAC @ 1.1 A, 50/60 Hz
- DC output: 24 VDC @ 5.25 A
- Charger current: 1.25 A max
- NAC outputs: 2.3 A special application / 1.6 A regulated continuous
- Dimensions: 14.5″ W x 19″ H x 3.5″ D
- Weight: 20 lbs without batteries
- Enclosure: ABS/steel, gray
- Listings: UL 864, NFPA 70/72/13 compliant, CSFM 7165-0410:180
Order or Get Application Help
For pricing or system design help on the Hochiki FNP1127US00GS120, call Life Safety Consultants at 1-888-557-0558. You can also email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 20 lbs |
|---|---|
| Dimensions | 21 × 17.5 × 7.5 in |
| Condition | New |
| Manufacturers | Hochiki |
| Part Type | Replacement Part |
