GAMEWELL (ASD-PTL3) White Addressable Thermal Photoelectric

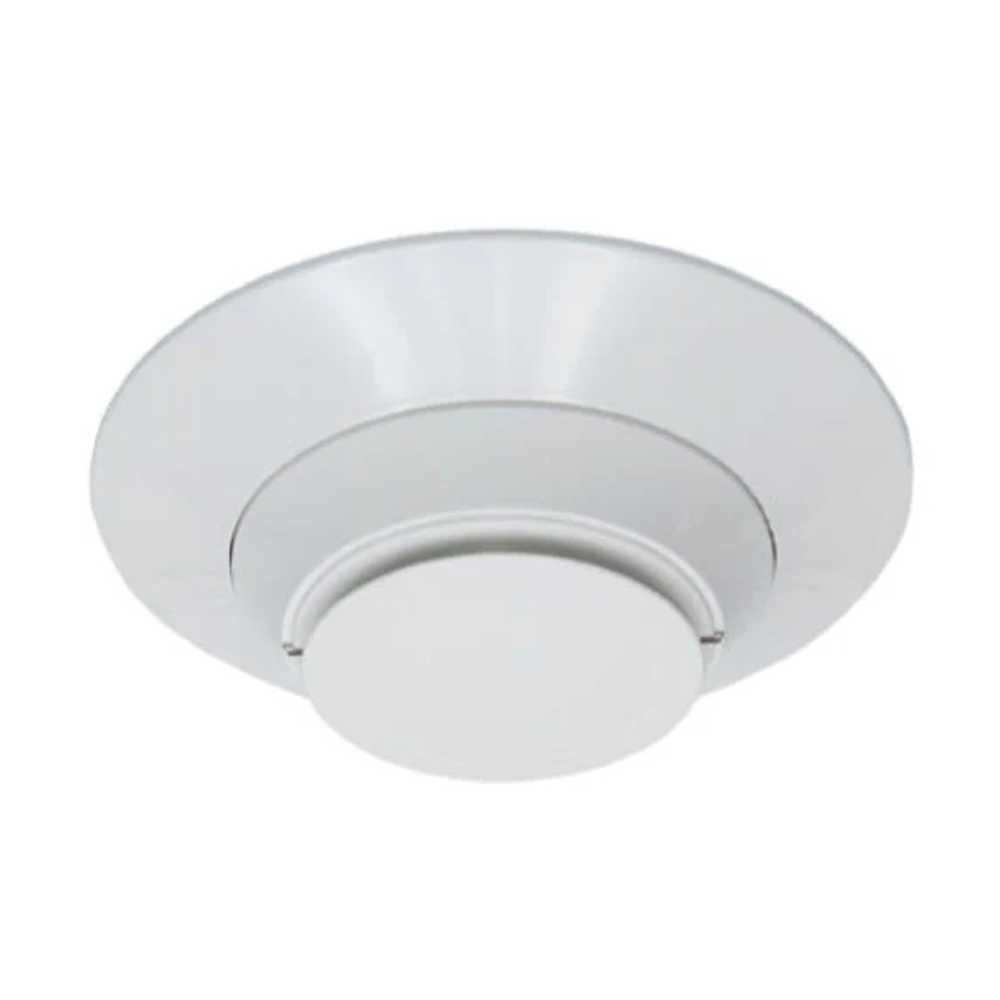

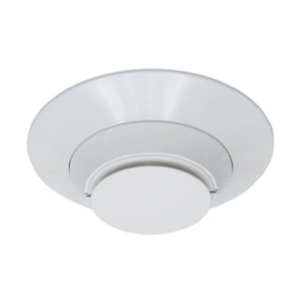

Gamewell ASD-PTL3 Addressable Thermal Photoelectric Detector

The Gamewell ASD-PTL3 represents advanced fire detection technology designed for comprehensive commercial and institutional environments. This white addressable thermal photoelectric detector provides robust, intelligent smoke and heat sensing capabilities for complex fire alarm systems, delivering precise multi-criteria detection across challenging commercial applications.

Engineered for seamless integration with modern addressable fire alarm panels, the ASD-PTL3 offers sophisticated environmental monitoring through simultaneous thermal and optical sensing technologies. Its intelligent design allows for nuanced detection in spaces ranging from office complexes and healthcare facilities to educational institutions and manufacturing environments.

Key Features

• Advanced dual-sensing technology combining photoelectric smoke detection with thermal heat sensing
• Compatible with Gamewell-FCI addressable intelligent fire alarm control panels
• White low-profile design optimized for aesthetic and discrete mounting
• Enhanced signal processing algorithms minimize false alarm potential
• UL 268 and NFPA 72 compliant for comprehensive fire safety standards
• Operating temperature range: 32°F to 100°F (0°C to 38°C)

Technical Specifications

• Operating Voltage: 15-32 VDC
• Standby Current: 250 µA typical
• Alarm Current: 5 mA @ 24 VDC
• Base Compatibility: Standard 4″ addressable detector bases
• Communication Protocol: Class A/B polling
• Mounting Height: Up to 20 feet standard

Ideal for installation in commercial HVAC systems, data centers, healthcare facilities, and institutional environments requiring sophisticated fire detection, the Gamewell ASD-PTL3 provides reliable, intelligent monitoring with minimal maintenance requirements.

For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
