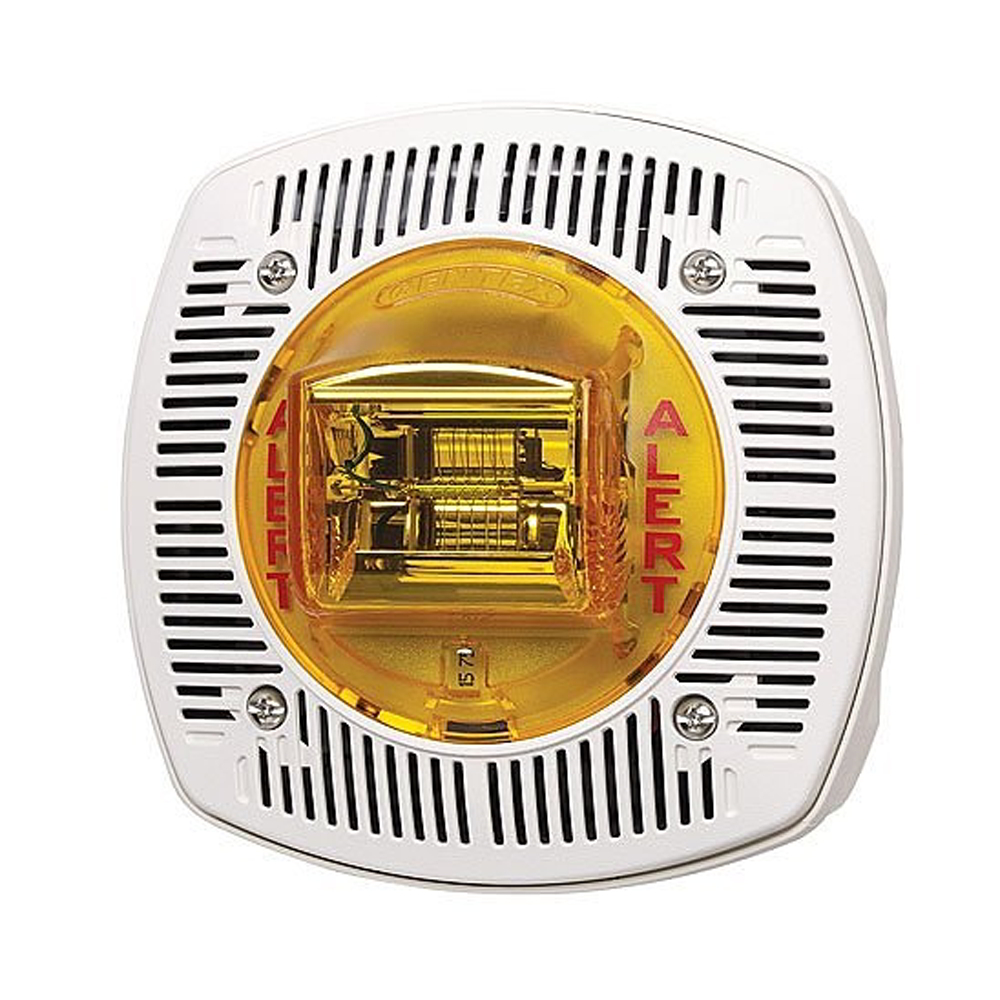

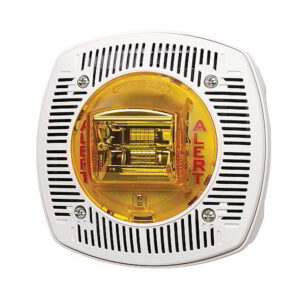

The Gentex WSSPKA24-15/75AWW is an outdoor-listed, wall-mount speaker/strobe in the Gentex WSSPK Series. It carries a white faceplate with ALERT lettering for non-fire mass-notification applications.
First, the unit combines a 25/70.7 VRMS speaker and a 24 VDC strobe. Then, the 15/75 candela strobe provides ADA-compliant high-candela coverage. As a result, one assembly covers both audio evacuation and visual alerting outdoors.
Gentex WSSPKA24-15/75AWW Specifications
The speaker voltage is field-selectable for 25 V or 70.7 VRMS. Furthermore, power taps are field-selectable at 1/8, 1/4, 1/2, 1, 2, or 4 watts. Sound output at 4 W reaches 87.9 dBA at 10 ft. In addition, the audio frequency range is 400–4000 Hz.
The strobe is fixed at 15/75 candela and operates at 16–33 VDC (24 VDC nominal). Strobe current is 63 mA typical, 96 mA UL Max at 24 VDC. The visual signal flashes at 1 Hz regardless of input voltage. Screw terminals accept 12–18 AWG wire.
Outdoor Listing and Back Box
The WSSPK Series ships with the GBLP outdoor-listed back box. However, the GBLP seal is not watertight. Instead, an installer-fitted gasket and back-box drain holes manage moisture intrusion. As a result, the assembly is listed for outdoor and severe-environment use, but it is not a fully sealed enclosure.
Listings and Compliance
- ANSI/UL 1480 Listed (speakers)
- ANSI/UL 1638 Listed (visual signaling)
- CAN/ULC S526 and/or CAN/ULC S541 Listed
- CSFM 7320-0569:0141
- NFPA 72 and NFPA 720 compliant
- IBC/IFC/IRC compliant
Installation Notes
Indoor operating temperature is 32 °F to 120 °F (0 °C to 49 °C). Outdoor operating temperature is -31 °F to 150 °F (-35 °C to 66 °C). Additionally, the WSSPK Series may be synchronized using the Gentex AVSM Series Control Module.
Order or Get Application Help
Since 2002, Life Safety Consultants has supplied Gentex outdoor notification appliances to commercial integrators. To order the Gentex WSSPKA24-15/75AWW — or to confirm part-number compatibility with your project drawings — call 1-888-557-0558. You can also email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 6.5 × 6.5 × 5 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Horn / Strobe |
