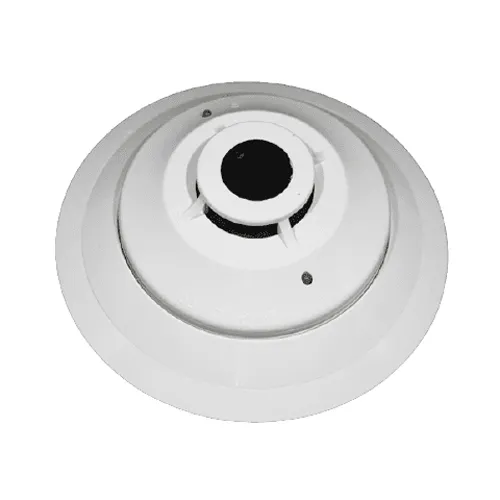

The Fire-Lite H355HT addressable heat detector represents advanced thermal sensing technology designed for precise commercial fire detection environments. Engineered as a low-profile addressable device, this heat detector provides critical early warning capabilities for sophisticated fire alarm systems in commercial, industrial, and institutional settings. Its compact design enables seamless integration with modern addressable fire alarm panels while maintaining exceptional thermal sensitivity.
Ideal for installation in areas with challenging environmental conditions, the H355HT heat detector offers reliable performance in locations where smoke detectors may generate nuisance alarms. Typical deployment scenarios include mechanical rooms, warehouses, kitchen areas, manufacturing facilities, and other spaces with potential high-heat or combustion risks. The addressable architecture allows precise location identification, enabling faster emergency response and pinpoint accuracy for facility management teams.
Key Features
- Addressable communication protocol compatible with Fire-Lite and select Honeywell commercial fire alarm panels
- Fixed temperature heat sensing with 135°F (57°C) thermal threshold for rapid fire detection
- Low-profile design measuring less than 2 inches in height for discrete installation
- UL Listed and compliant with NFPA 72 National Fire Alarm and Signaling Code requirements
- Wide operating voltage range supporting 15-32 VDC fire alarm circuit configurations
- Designed for commercial applications with RoHS and CE certification
Specifications
- Operating Voltage: 15-32 VDC
- Standby Current: 250 μA typical
- Alarm Current: 5 mA maximum
- Mounting Base: Standard 4-inch electrical box compatible
- Temperature Rating: 135°F fixed temperature
- Agency Listings: UL 268, UL 464, CSFM, MEA
Professional fire alarm installers and system integrators will appreciate the H355HT’s robust design, which supports complex addressable fire detection networks. Its precise thermal sensing capabilities make it an essential component for maintaining comprehensive life safety infrastructure in commercial and institutional environments.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 7 × 7 × 3 in |
| Condition | New |
| Manufacturers | Fire-Lite |
| Part Type | Heat Detector |
