Altronix (PD4ULCB) Ul power distrib unit w/cb

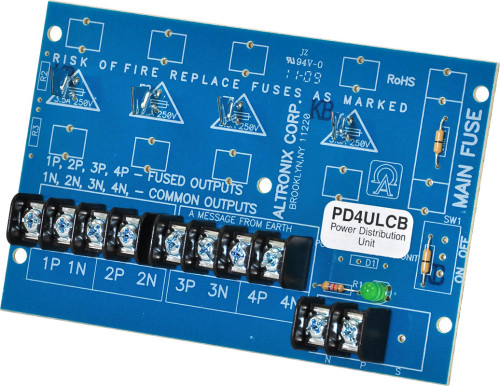

The Altronix PD4ULCB is a UL-Listed sub-assembly power distribution board. Specifically, it converts a single AC or DC input from an upstream power supply into four PTC-protected, auto-resettable Class 2 power-limited outputs.

First, the PD4ULCB accepts 12 or 24VDC up to 10 A, or 24 or 28VAC up to 12 A, from the host power supply. Then, four on-board PTCs split that bus into four 2 A power-limited outputs. In addition, each PTC auto-resets after the fault clears, eliminating the fuse-replacement service call. As a result, integrators get clean output isolation without sacrificing serviceability.

Altronix PD4ULCB — Verified Specifications

• Form factor: open PCB, 5.25″ L x 3.25″ W x 1″ H; mounting hardware included
• Input voltage: 12 or 24VDC up to 10 A, or 24 or 28VAC up to 12 A
• Outputs: four (4) PTC-protected Class 2 power-limited (auto-resettable)
• Output rating: 2 A per PTC (PTCs rated 2 A / 250 V)
• Total output current: must not exceed the upstream power supply rating
• Indicator: DC output power LED
• Operating temperature: 32 °F to 120 °F
• Product weight: 0.15 lb (0.07 kg)

Verified Agency Listings

Furthermore, the PD4ULCB carries UL 294 (Access Control), UL 603 (Burglar Alarm), and UL 1481 (Fire Alarm). Also, cUL coverage includes CSA C22.2 No. 205-M1983 General Signaling Equipment and ULC-S318 Power Supplies for Burglar Alarm Systems. Therefore, the PD4ULCB is a true fire-listed sub-assembly when paired with a listed host power supply.

Sub-Assembly Use Note

However, the PD4ULCB is a UL Listed sub-assembly, not a stand-alone product. Specifically, it must be installed inside a listed Altronix enclosure (for example BC100, or as the factory module inside an AL600ULPD4CB / AL600ULXPD4CB) and powered by the matching listed PSU. Therefore, the system listing flows through the assembled cabinet, not through the board alone.

Order or Ask About a Pre-Built Enclosure

To order the Altronix PD4ULCB, or to discuss a pre-built AL600ULXPD4CB instead of a field build, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
