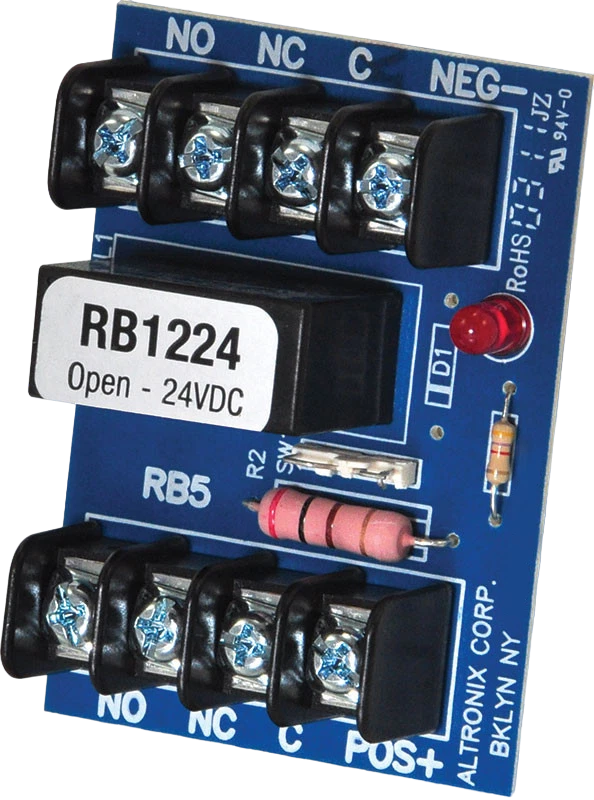

The Altronix RB1224 Relay Module is a high-performance dual-pole, double-throw (DPDT) switching solution designed for complex fire alarm and building automation control systems. Engineered for reliability in commercial and institutional environments, this 12V/24V relay provides critical interconnection capabilities for life safety and building management applications.
Ideal for integrating with fire alarm control panels, HVAC systems, and emergency notification networks, the RB1224 enables precise electrical circuit switching across multiple voltage configurations. Fire alarm technicians and electrical contractors will appreciate its robust design, which supports switching loads up to 5 amps while maintaining exceptional signal integrity and mechanical durability.
Key Features
- Dual-pole, double-throw (DPDT) configuration for versatile circuit routing and control
- Compatible with 12V and 24V DC electrical systems in commercial fire alarm architectures
- 5-amp switching capacity supports a wide range of control and notification circuit requirements
- Compact form factor designed for streamlined panel integration and minimal installation footprint
- Precision-engineered contacts ensure consistent performance under demanding environmental conditions
- UL Listed component, meeting stringent fire alarm system compatibility standards
Specifications
- Voltage Range: 12V/24V DC
- Contact Rating: 5 amps maximum
- Configuration: Dual-Pole, Double-Throw (DPDT)
- Compliance: UL Listed, compatible with NFPA 72 installation requirements
Typical installation scenarios include addressable fire alarm panels, emergency communication systems, HVAC shutdown circuits, and building-wide notification networks in healthcare facilities, educational campuses, commercial office complexes, and industrial environments. The RB1224’s versatile design allows for seamless integration with existing Altronix and third-party control systems.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 4 × 2 × 2 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Relay Module |
