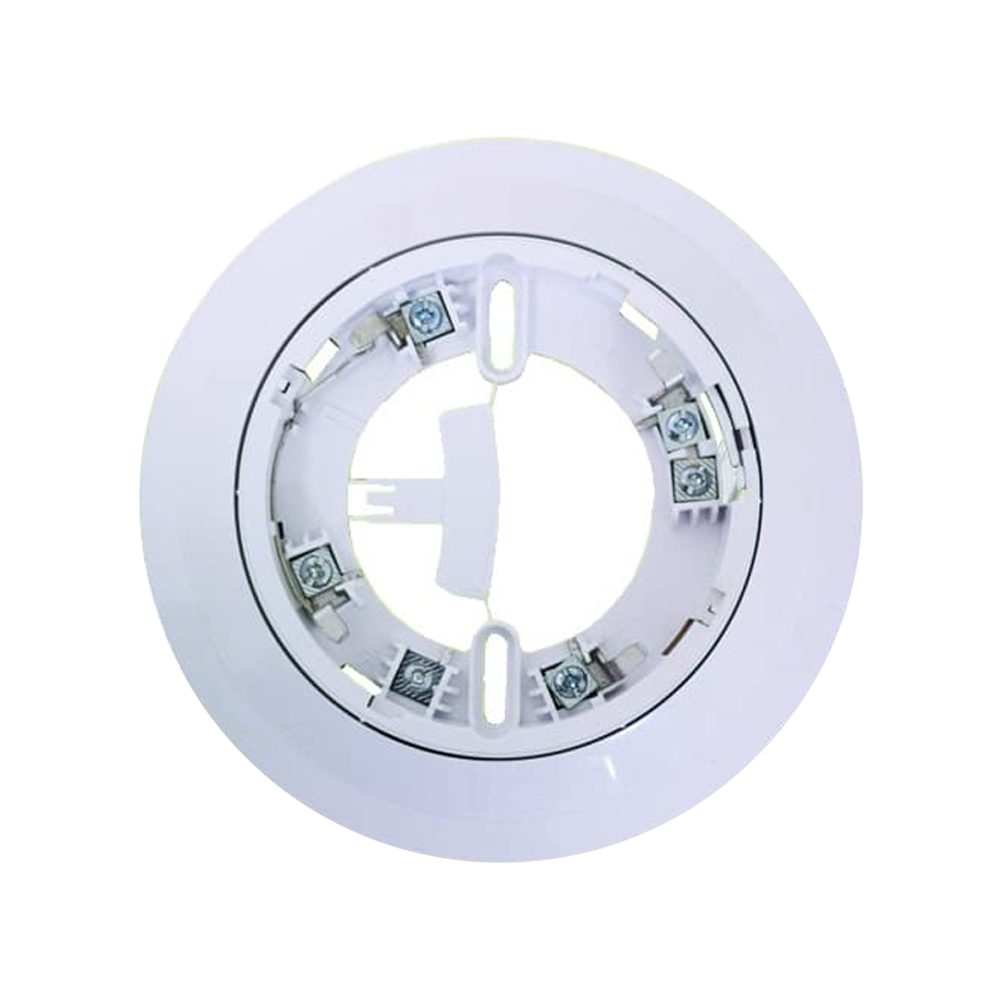

The Secutron MRI-4001 is a 6-inch detector base. It interfaces MRI-4000 Series intelligent addressable detectors to the SLC line. As a result, installers can pre-wire the base during construction and add the detector later, once the area is clean.
First, the open-style design simplifies wiring. In addition, the low-pressure docking feature lets technicians seat the detector with one hand. Furthermore, the base includes an Anti-Tamper feature for the detector head.
Where the Secutron MRI-4001 Fits
Specifically, the MRI-4001 supports ceiling or wall mounting. Also, a 4-inch variant (MRI-4002) is available for tighter ceilings. Choose the MRI-4001 when you need the full 6-inch footprint for tamper or labelling clearance.
A breakable flat tab in the center of the base accepts a label. Therefore, technicians can identify the address of every device on the loop without opening it up.
Compatible Detectors
- MRI-4010 / MRI-4010-ISO Photoelectric Smoke Detector
- MRI-4020 / MRI-4020-ISO Multi-Sensor Photo / Heat Detector
- MRI-4021 / MRI-4021-ISO Photoelectric and Heat Sensor
- MRI-4030 / MRI-4030-ISO Tri-Mode Heat Detector
Key Features
- 6-inch diameter low-profile mounting base
- Ceiling or wall mountable
- Anti-tamper feature
- Breakable centre tab for device labelling
- Open-style design with low-pressure detector docking
- Wiring range 12 to 22 AWG on all terminals
- UL, ULC, CSFM, and FM Approved
Specifications
- Diameter: 6 inches
- Height: 0.625 inches
- Terminal Wire Range: 12 to 22 AWG
Order the Secutron MRI-4001
Life Safety Consultants stocks the MRI-4001 alongside the MRI-4000 detector family. To order or check fit, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 6.5 × 6.5 × 0.5 in |
| Condition | New |
| Manufacturers | Secutron |
| Part Type | Detector Base |
