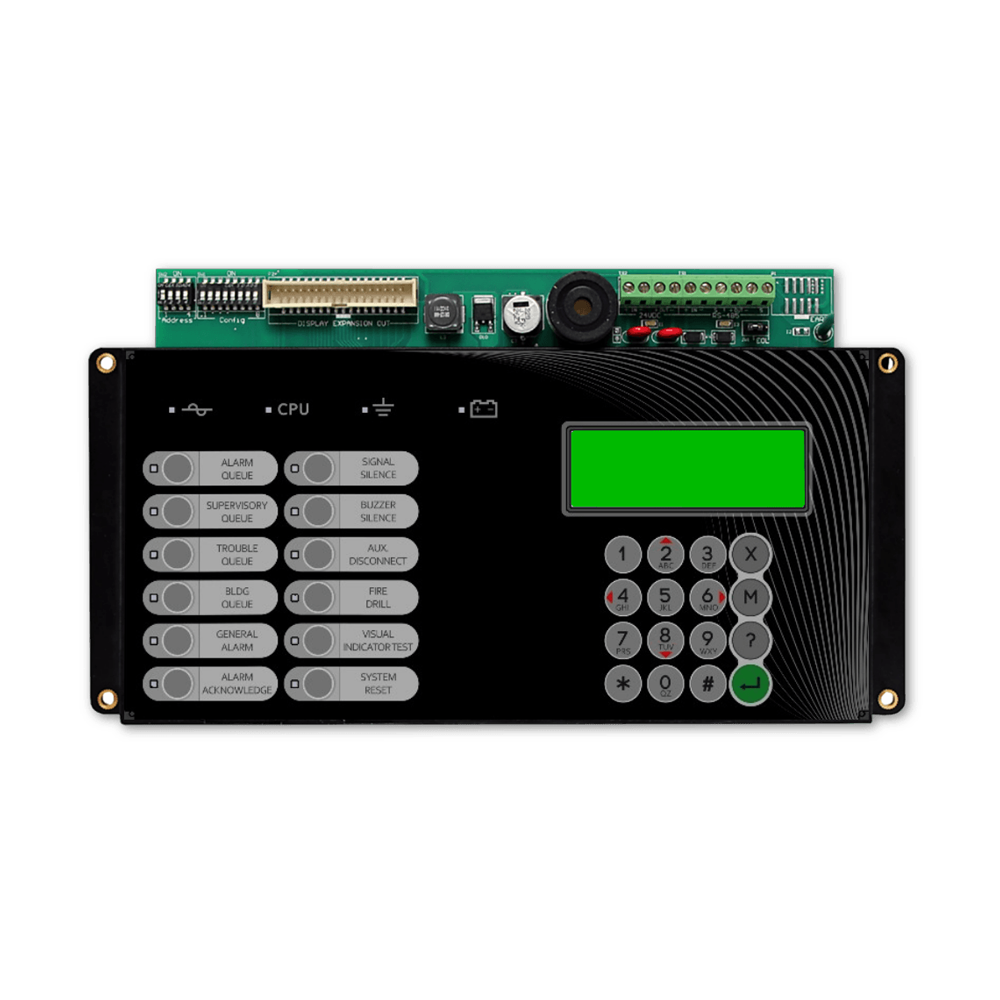

The SECUTRON RAM-3318-LCD MR-400 Remote LCD Annunciator is a comprehensive fire alarm notification and monitoring solution designed for complex commercial and institutional fire detection systems. Engineered for precise event tracking and system status communication, this advanced remote annunciator provides facility managers and fire safety professionals with real-time visibility into critical fire alarm panel information.
Compatible with addressable fire alarm control panels across multiple platforms, the MR-400 offers robust event monitoring through its 4 x 20 character back-lit LCD display. The unit is specifically designed for mounting in standard BB-1000 enclosures, making it an ideal retrofit or new installation component for professional fire alarm technicians working in healthcare, educational, commercial office, and industrial environments.
Key Features
- Four independent event display queues for comprehensive system status tracking
- Ruggedized 4 x 20 character back-lit LCD display with high contrast for optimal readability
- Universal mounting compatibility with standard BB-1000 enclosure systems
- Fully compliant with NFPA 72 National Fire Alarm and Signaling Code requirements
- UL 864 listed for use in fire alarm and emergency communication systems
- Low power consumption design supporting 24VDC primary fire alarm circuits
Technical Specifications
- Operating Voltage: 24VDC nominal
- Current Draw: < 100mA typical
- Display Resolution: 4 lines x 20 characters
- Mounting: BB-1000 enclosure compatible
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
- Relative Humidity: 10% to 93% non-condensing
Ideal for integration with complex fire alarm systems in multi-zone facilities, the RAM-3318-LCD provides critical real-time monitoring for HVAC shutdown sequences, zone-specific alarm conditions, and system supervisory events. Professional installers will appreciate its straightforward configuration and reliable performance across diverse commercial building environments.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.9 lbs |
|---|---|
| Dimensions | 12.5 × 10 × 2 in |
| Condition | New |
| Manufacturers | Secutron |
| Part Type | Horn / Strobe |
