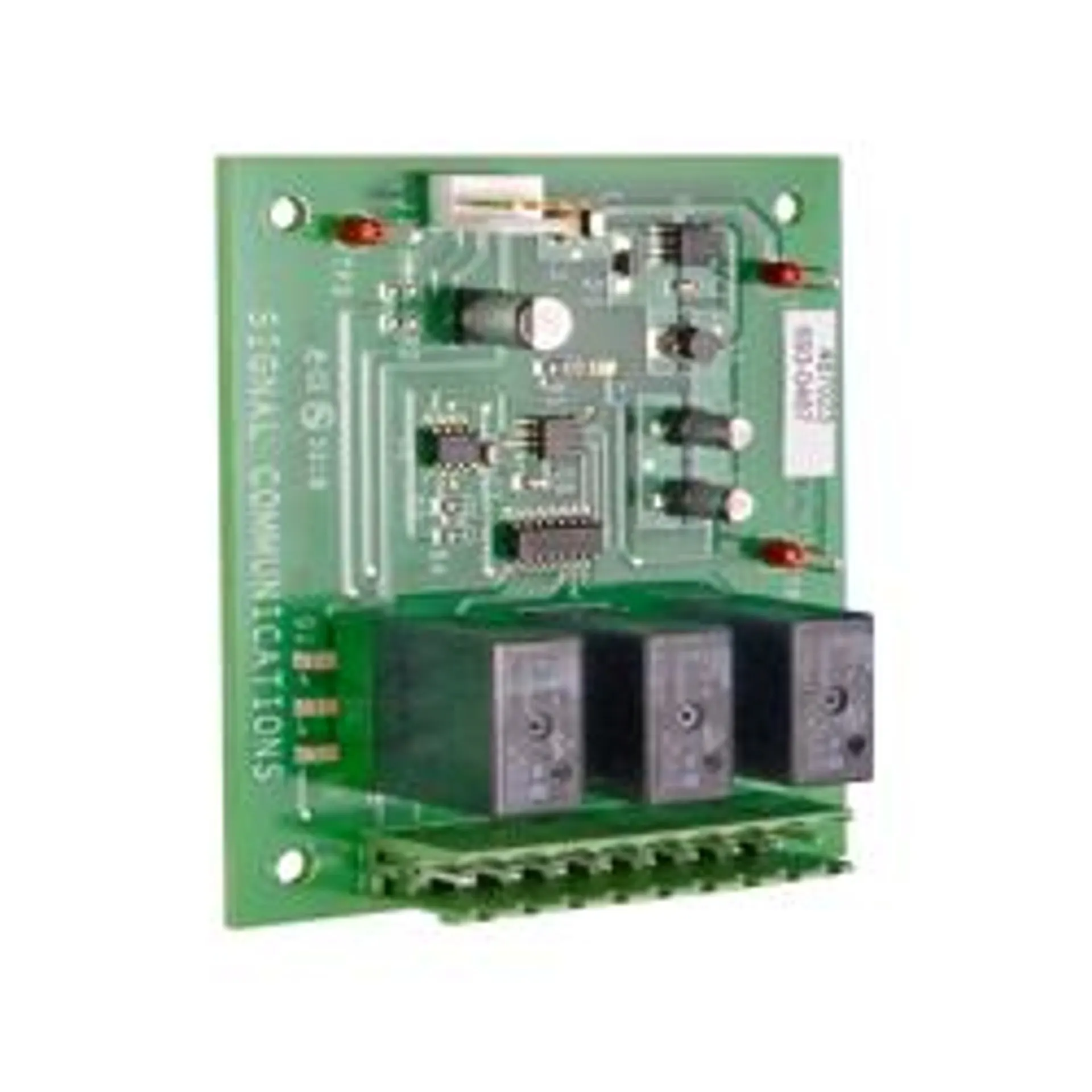

SigCom MNS-3-REL Common Alarm and Trouble 3-Relay Card
Product Overview
The MNS-3-REL 3-Relay Card provides three Form-C relay contact outputs to signal external devices in the system. The three outputs are typically used as Active and Trouble indicators, with the third used for other applications.
Key Features & Functionality:
- 3 Form-C Relays: Offers Normally Open (N.O.) and Normally Closed (N.C.) contacts for versatile integration.
- System Integration: Connects to voice evacuation panels like the MNS-100BAS to expand signaling capabilities.
- Applications: Typically used for:
- Active Alarm/Signal: To show the system is in an active alert state.
- Trouble Indicator: To signal faults or system issues to other devices.
- Spare/Other: The third relay for custom applications like controlling other systems or indicators.
- Power: Operates on 24VDC, drawing low standby current.
- Listings: ETL Listed for UL 864 (Fire Alarm Systems), UL 1711 (Amplifiers), and complies with UL 2572 (Mass Notification Systems).
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at : sales@lifesafetycom.com
Additional information
| Weight | 10 lbs |
|---|---|
| Dimensions | 19 × 14 × 4 in |
