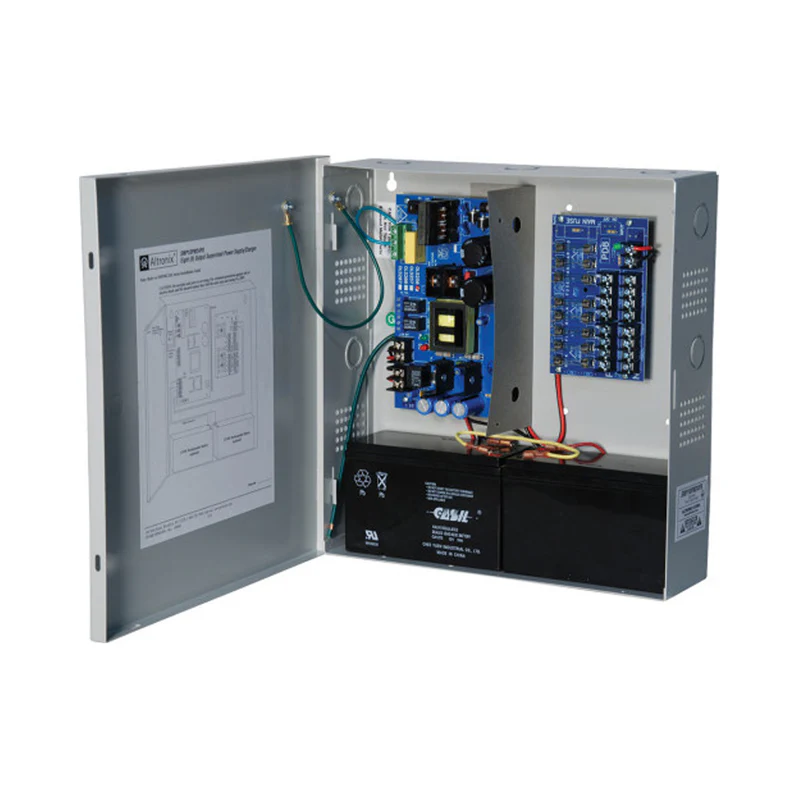

The Altronix SMP10PM24P8 is a multi-output 24VDC power supply and charger. It converts a 115VAC input into eight independently fused 24VDC outputs in a wall-mount enclosure.
First, 115VAC at 60 Hz feeds the supply at 2.7 A. Then the unit produces a regulated 24VDC bus at 10A total continuous. As a result, the bus drives the PD8 distribution board across eight fuse-protected outputs rated 3.5A each.
In addition, an integrated charger keeps the standby batteries topped off. Therefore, the unit transfers to battery instantly on AC loss with zero voltage drop. Furthermore, AC fail and low-battery supervision both report through Form C contacts.
Key Features of the Altronix SMP10PM24P8
- Eight (8) fuse-protected 24VDC outputs at 3.5A each
- 10A total continuous output current
- Integrated sealed lead acid / gel battery charger, 0.7A max
- Zero-voltage-drop battery transfer on AC loss
- AC fail supervision via Form C contact
- Battery presence and low-battery supervision via Form C contact
- Power on/off switch and AC / DC LED indicators
- BC300 wall-mount enclosure with knockouts for two 12VDC/12AH batteries
Specifications
- Input: 115VAC, 60 Hz, 2.7A
- Output bus: 24VDC at 10A continuous max
- Outputs: 8 fused, 3.5A each (PD8 distribution)
- Battery type: sealed lead acid or gel, sold separately
- Battery capacity: up to two (2) 12VDC/12AH within enclosure
- Enclosure: BC300 indoor wall-mount, 1/2″ and 3/4″ combo knockouts
- Dimensions (W x H x D): 13″ x 13.5″ x 3.25″ (330 x 343 x 83 mm)
- Product weight: 11.15 lb (5.06 kg)
- Operating temperature: 0°C to 49°C (32°F to 120°F)
- BTU/hr: 122; System AC input: 310.5 VA
Agency Compliance
Per the published SMP10C24X series data sheet, the SMP10PM24P8 carries CE (European Conformity) marking. The Altronix data sheet does not list UL 864, UL 294, or UL 1481 agency approvals for this model. Therefore, this unit is not an appropriate selection for UL 864 fire-alarm or UL 294 access-control applications. For those, choose a series with the matching agency listing (for example AL1024ULX for UL 294 + UL 1481, or FireSwitch108 for UL 864 NAC power).
Order the Altronix SMP10PM24P8
Life Safety Consultants stocks the Altronix SMP10PM24P8 and matching standby batteries. To order or to confirm fit, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
