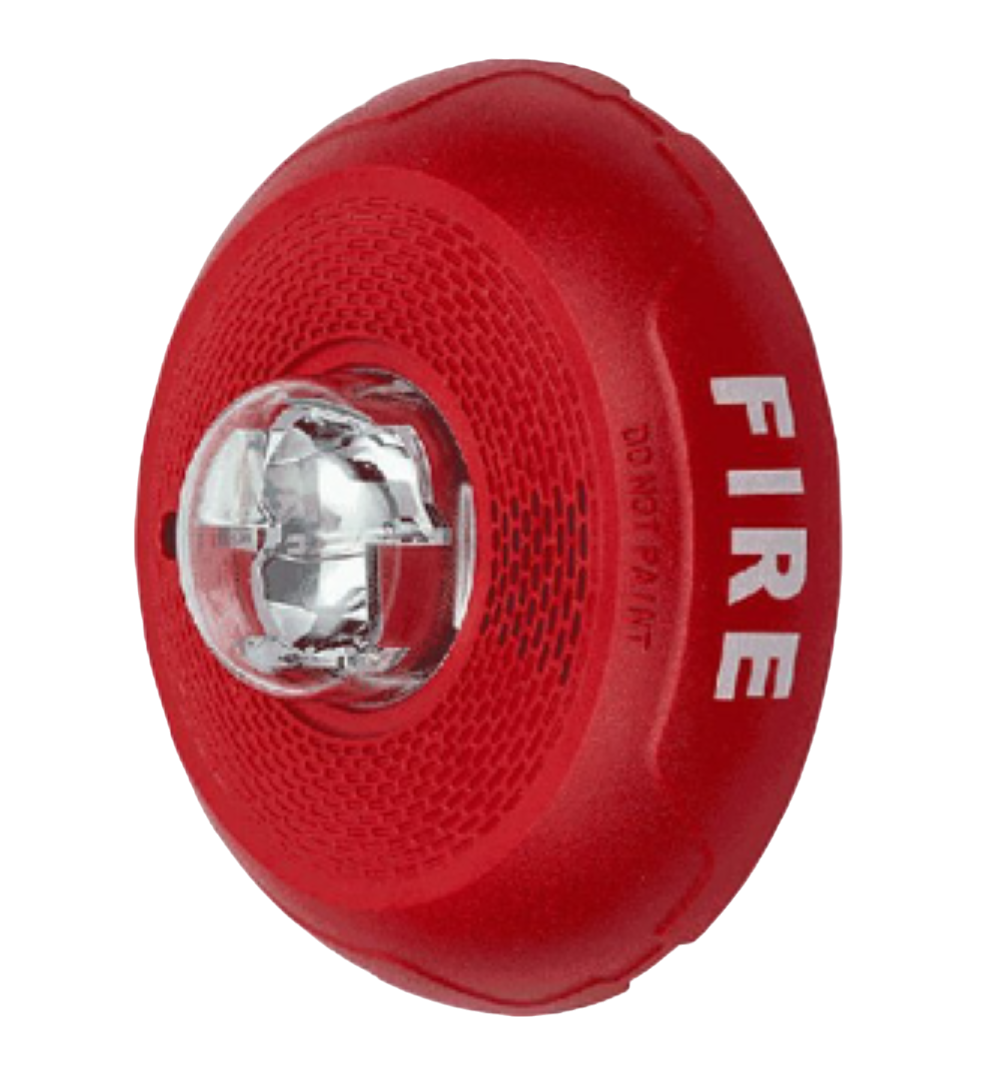

The System Sensor PC2RLED LED Horn Strobe represents a critical notification device for comprehensive commercial fire alarm and emergency communication systems. Engineered for ceiling-mounted installations, this high-performance unit combines audible and visual alarm signaling in a compact, professional-grade design. Specifically developed for commercial environments requiring robust emergency notification, the PC2RLED delivers reliable, code-compliant alert mechanisms across complex facility layouts.
Designed for integration with addressable fire alarm control panels and conventional notification circuits, this device provides synchronized emergency communication in settings ranging from office complexes and healthcare facilities to educational institutions and industrial environments. The red LED strobe ensures maximum visibility and immediate comprehension during critical evacuation scenarios, while the integrated horn delivers standardized audible alarm notifications.
Key Features
- Two-wire synchronization compatibility with modern fire alarm systems
- UL 464 and UL 1638 listed for comprehensive safety compliance
- Low-current LED strobe technology with superior energy efficiency
- NFPA 72 compliant notification appliance for commercial installations
- Intelligent mounting design supporting direct ceiling installation
- High-visibility red strobe with standardized candela ratings
Specifications
- Operating Voltage: 24VDC nominal
- Current Draw: Approximately 85mA peak
- Sound Output: 85 dBA at 10 feet
- Strobe Candela Ratings: Available in 15, 30, 75, and 110 CD configurations
- Operating Temperature Range: 32°F to 120°F
- Dimensions: 6.25″ diameter, 2.25″ depth
Typical installation environments include commercial office buildings, educational campuses, healthcare facilities, manufacturing plants, and any institutional setting requiring comprehensive emergency notification. Compatible with most major fire alarm control panel manufacturers, the PC2RLED provides reliable, standardized emergency communication across diverse architectural configurations.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.2 lbs |
|---|---|
| Dimensions | 8 × 7 × 4 in |
| Condition | New |
| Manufacturers | System Sensor |
| Part Type | Horn / Strobe |
