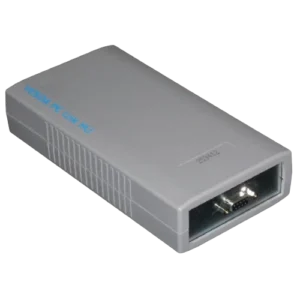

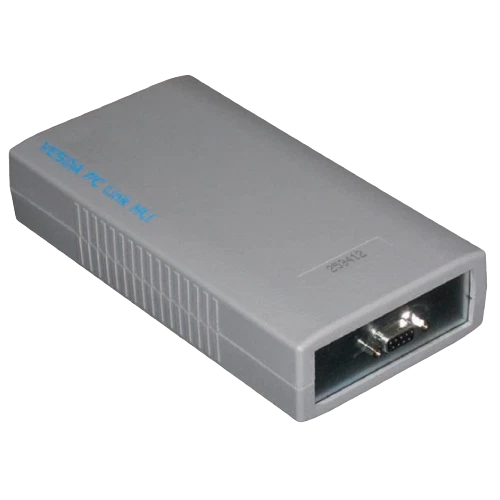

The vesda vhx-0300 pc link is an Open Protocol High Level Interface (HLI). It connects a VESDAnet network to a host device. Specifically, it links to PCs, building management systems, and fire panels.
First, an RS232 cable connects the HLI to the host. Then an RS485 cable connects it to a VESDAnet socket. As a result, the host can monitor devices on VESDAnet.
How the vesda vhx-0300 pc link Works
The HLI runs in peer-to-peer mode. In this mode, the host polls the HLI for device information. In addition, the HLI sends event messages to the host. However, VESDA HLIs are intended for monitoring, not primary reporting.
Key Features
- VESDA Open Protocol High Level Interface (HLI)
- RS232 connection to the host (PC, BMS, or FACP)
- RS485 connection to a VESDAnet socket
- Peer-to-peer communication
- Supplied with connection leads
Order the vesda vhx-0300 pc link
Life Safety Consultants stocks VESDA interface products. To confirm fit for your network, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2.6 lbs |
|---|---|
| Dimensions | 11.9 × 10.3 × 4.2 in |
| Condition | New |
| Manufacturers | VESDA |
| Part Type | Replacement Part |
