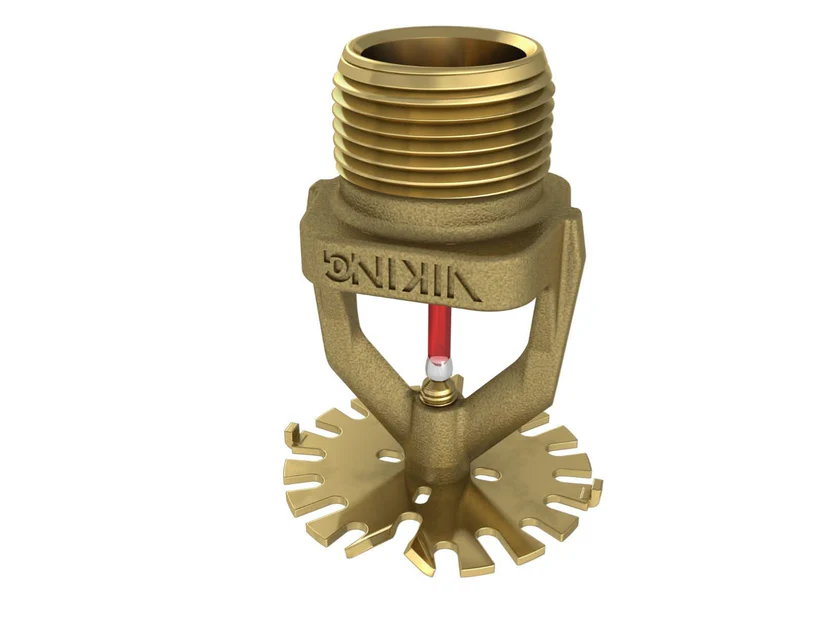

The Viking VK572 is an extended coverage, ordinary hazard pendent fire sprinkler. It features a 14.0 K-factor for higher flow. Specifically, this version has a brass finish and a 155°F (68°C) temperature rating. As a result, it serves standard commercial ceilings well. The matching part number is 13722AB.
Design and Ratings
First, the glass-bulb operating element releases water at 155°F (68°C). This rating uses a red bulb for easy field identification. In addition, the maximum working pressure is 175 PSI (12 bar). The sprinkler also connects through standard 3/4-inch NPT threads.
Construction
The frame uses durable brass, paired with a bronze deflector. Furthermore, the overall length measures 2-7/16 inches (62 mm). Its extended coverage design lets one head protect a larger area. Therefore, it can reduce the number of sprinklers a layout requires.
Key Features
- Extended coverage, ordinary hazard pendent sprinkler
- 14.0 K-factor for higher flow
- 155°F (68°C) temperature rating, red glass bulb
- Brass finish; part number 13722AB
- 3/4-inch NPT thread connection
- Maximum working pressure 175 PSI (12 bar)
- Overall length 2-7/16 in. (62 mm)
Order the Viking VK572 or Get Application Help
Since 2002, Life Safety Consultants has supplied genuine Viking fire sprinklers. To order the Viking VK572 or confirm compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 2 × 2 × 2.5 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
