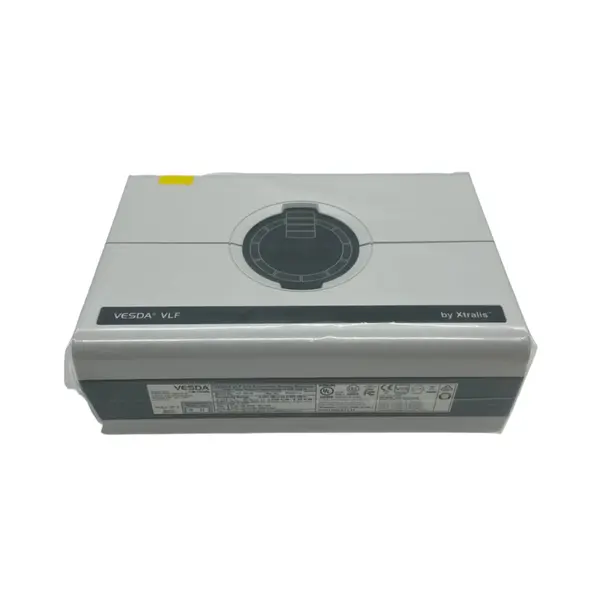

VESDA LaserFOCUS 250 Aspirating Smoke Detector
The VESDA LaserFOCUS 250 (VLF-250-00) is an aspirating smoke detector for small, business-critical spaces. Specifically, it protects areas up to 250 m². A fan draws air through sampling pipes into the detector. Then laser light-scattering technology senses smoke.
This early-warning approach detects smoke before many traditional point detectors. As a result, staff gain more time to respond. In addition, the unit offers multiple sensitivity levels for graded alarm response.
VESDA LaserFOCUS 250 Detection Performance
The detector runs on a 24 VDC supply. Furthermore, it provides four alarm thresholds: Alert, Action, Fire 1, and Fire 2. Alert and Action settings range from 0.025 to 2.00% obscuration per meter. Fire 1 and Fire 2 settings range from 0.025 to 20.00% obs/m.
- Coverage: up to 250 m² (small-area protection)
- Supply voltage: 24 VDC
- Detection: laser light-scattering aspirating technology
- Sensitivity (12-hole configuration): Class A 0.12%, Class B 0.35%, Class C 0.80% obs/m
- Alarm thresholds: Alert, Action, Fire 1, Fire 2
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 6.2 lbs |
|---|---|
| Dimensions | 12.7 × 9.8 × 6.3 in |
| Condition | New |
| Manufacturers | VESDA |
| Part Type | Replacement Part |
