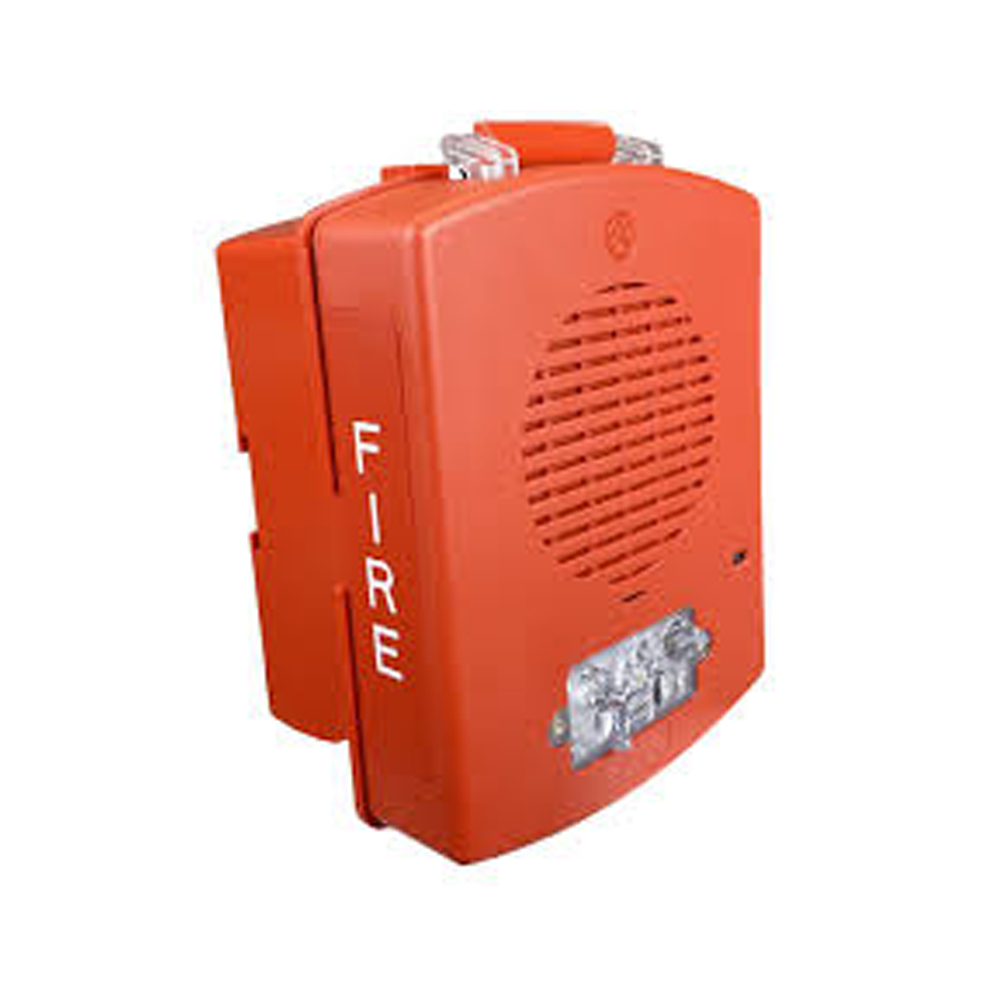

The Wheelock EL3RHS-FR is a NEMA 3R rated outdoor horn strobe. It belongs to Eaton’s Eluxa weatherproof notification line. Specifically, this model pairs a high-output horn with a clear-lens LED strobe. As a result, it delivers both audible and visual alerts. The red housing suits commercial fire alarm systems built to NFPA 72.
Weatherproof Design
First, the NEMA 3R / IP54 enclosure resists rain, sleet, and windblown dust. Therefore, it performs in covered outdoor and wet indoor areas. In addition, the unit operates from -40°F to 150°F. The UV-stabilized engineered plastic also withstands long sun exposure.
Signaling Performance
The strobe offers six field-selectable candela settings: 15, 30, 75, 110, 150, and 185 cd. Installers choose candela in the field, so one model fits many layouts. Furthermore, the LED strobe flashes for 20 ms, meeting NFPA 72 timing. The device runs on 24 VDC.
Key Features
- NEMA 3R / IP54 weatherproof enclosure for outdoor and wet locations
- Clear-lens LED strobe with six field-selectable candela settings (15–185 cd)
- High-output horn for audible signaling
- 24 VDC operation
- 20 ms strobe flash per NFPA 72 (2016)
- Operating range -40°F to 150°F
- Red UV-stabilized housing; wall or ceiling mount
- Installs with the included 3R mounting plate
- UL 464 (audible) and UL 1638 (visual) listed
Order the Wheelock EL3RHS-FR or Get Application Help
Since 2002, Life Safety Consultants has supplied genuine Eaton Wheelock notification and signaling devices. To order the Wheelock EL3RHS-FR or confirm compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 8 × 6 × 4 in |
| Condition | New |
| Manufacturers | Wheelock |
| Part Type | Horn / Strobe |
