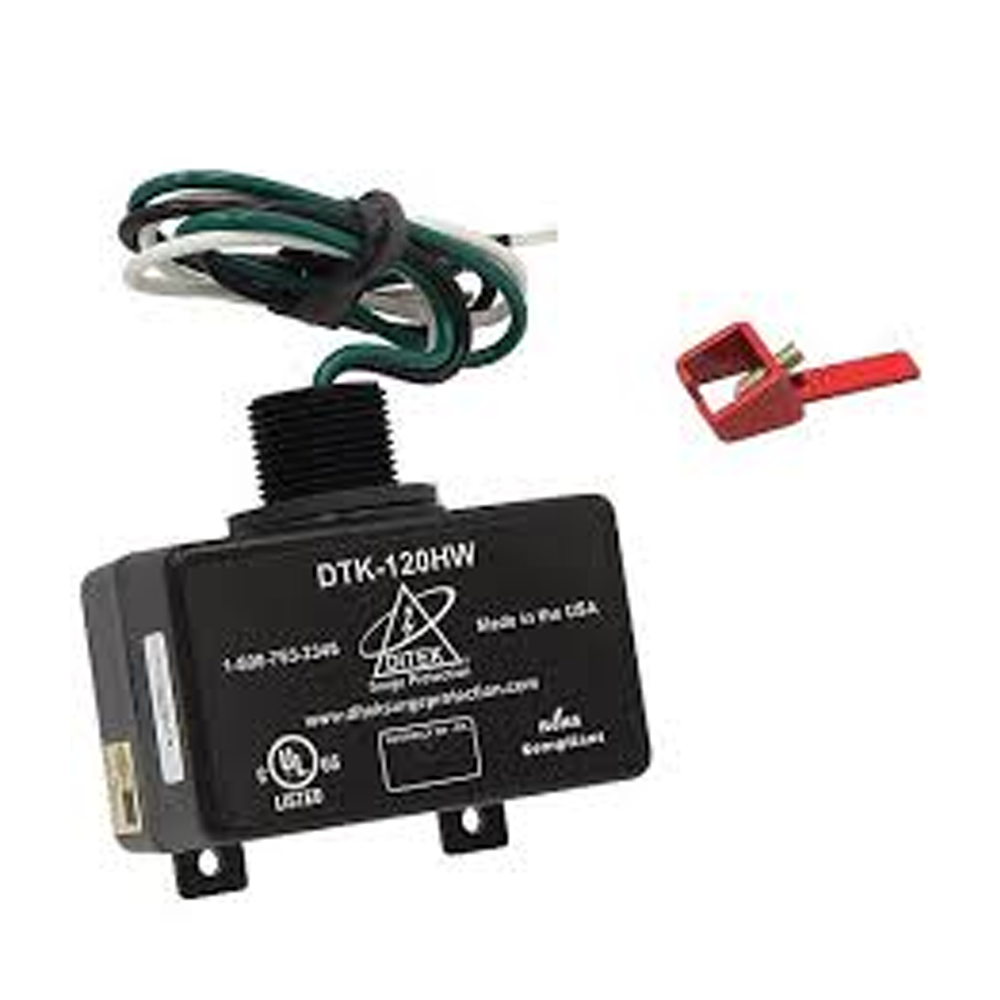

The Ditek DTK-120HWLOK is a 120VAC, 20A parallel-connected surge protective device. Specifically, it pairs UL 1449 Listed surge protection with an NFPA 72 compatible lockout kit.
First, install the DTK-120HWLOK across a 20A dedicated branch circuit feeding a fire alarm control panel. Then, the parallel design diverts transient surges to ground without interrupting the circuit. As a result, the DTK-120HWLOK preserves continuous AC power to the FACP.
Ditek DTK-120HWLOK Lockout Kit
The included lockout kit meets NFPA 72 2022 Section 10.6.5.4 requirements. Furthermore, it prevents accidental disconnect of the surge protector serving the fire alarm branch circuit. Therefore, installers comply with code without adding a separate locking enclosure.
Verified Specifications
- Service: 120VAC, 20A, single phase
- Connection: parallel-mount across the protected branch circuit
- Listing: UL 1449 Listed Surge Protective Device
- Standards compliance: ANSI/IEEE C62.41 and C62.45
- Enclosure: NEMA 4X weatherproof
- Diagnostic LEDs: ground presence, system power, SPD function
- Approved circuit breaker rating: 20A
- Lockout kit: NFPA 72 2022 Section 10.6.5.4 compatible (also meets 2013 10.6.5.2)
Typical Application
Use the DTK-120HWLOK on dedicated branch circuits supplying fire alarm control panels. In addition, it suits voice evacuation amplifiers, NAC power extenders, and emergency communication systems. However, the device itself is not UL 864 listed and does not replace a fire-listed power source.
Order or Get Application Help
To order the Ditek DTK-120HWLOK or confirm branch-circuit sizing, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com with your panel model.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.6 lbs |
|---|---|
| Dimensions | 6 × 4.5 × 2.75 in |
| Condition | New |
| Manufacturers | Ditek |
| Part Type | Replacement Part |
