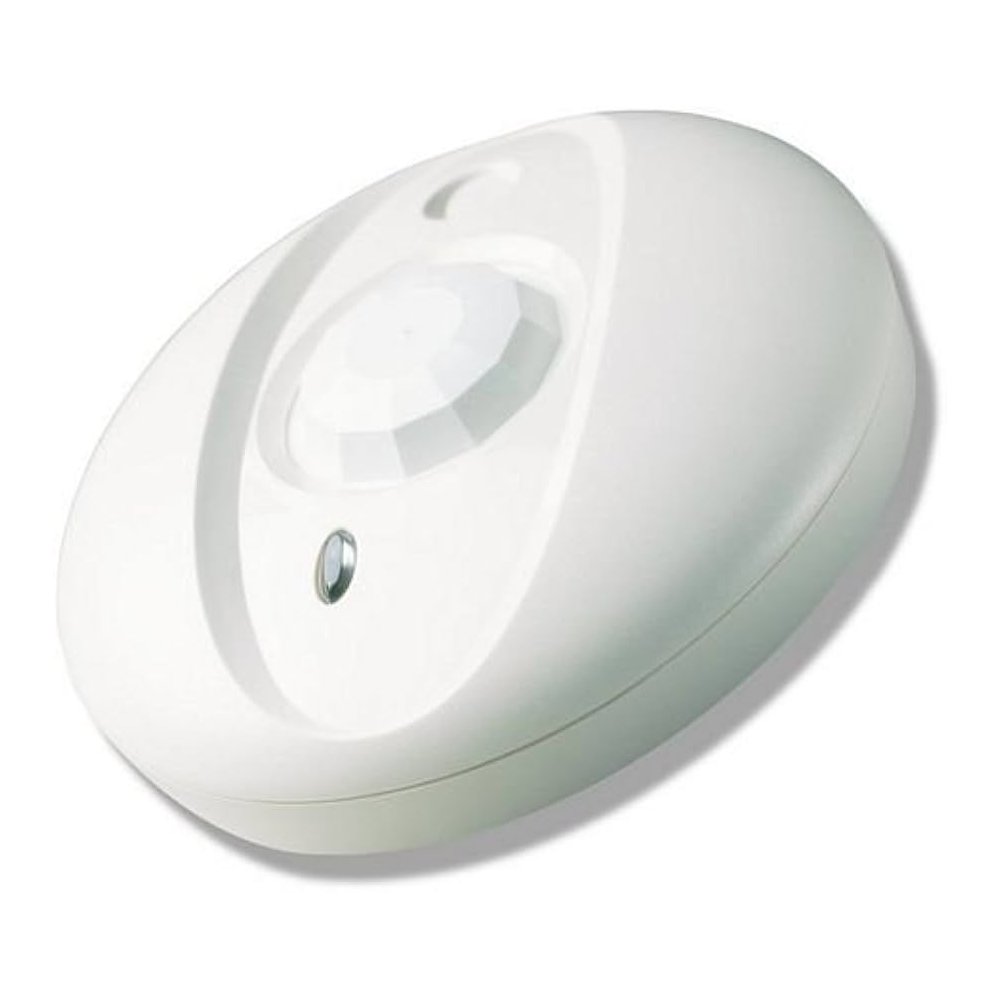

The dsc (amb-500) is an addressable ceiling-mount passive infrared motion detector. Specifically, it is part of the DSC Bravo 5 family for hardwired intrusion-detection systems, not fire alarm.
First, mount the AMB-500 to the ceiling in the area to be supervised. Then, wire it to a compatible DSC addressable security panel loop. As a result, the AMB-500 reports motion events with a unique address to the host intrusion panel.
dsc (amb-500) Detection Technology
The detector uses a quad PIR element and a Fresnel lens for full 360° coverage. In addition, Multi-Level Signal Processing (MLSP) helps distinguish humans from other heat sources. Furthermore, digital temperature compensation maintains catch performance near body-ambient conditions.
Verified Specifications
- Detection type: ceiling-mount passive infrared, 360° coverage
- Sensor: quad element with Fresnel lens
- Signal processing: MLSP with digital temperature compensation
- Sensitivity: high and low settings, selectable
- Operating voltage: 9 to 14 V RMS
- Standby current: 2.5 mA
- Contact rating: 100 mA at 24 VDC
- Operating temperature: 32°F to 120°F (0°C to 49°C)
- Relative humidity: 5% to 95%
- RF/EM immunity: 50 V/m from 0.01 to 1,200 MHz
- Dimensions: 4.6″ diameter × 1.4″ height
- Built-in tamper switch
Typical Application
Use the AMB-500 for indoor intrusion supervision on ceilings up to typical commercial heights. However, the AMB-500 is not a fire-alarm device. Therefore, do not connect it to a fire alarm control panel SLC or IDC loop.
Order or Get Application Help
To order the dsc (amb-500) or confirm coverage at mounting height, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com with your panel model.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.07 lbs |
|---|---|
| Dimensions | 5 × 5 × 2 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
