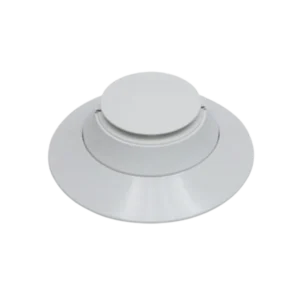

The Fire-Lite SD365R intelligent photoelectric duct smoke detector represents advanced detection technology for comprehensive fire monitoring in complex HVAC and air handling systems. Engineered specifically for LiteSpeed intelligent fire alarm platforms, this white detector provides precise smoke detection within ventilation ductwork, offering critical early warning capabilities for commercial and institutional facilities.
Designed for seamless integration with addressable fire alarm control panels, the SD365R delivers sophisticated detection through its advanced photoelectric sensing chamber. Ideal for deployment in educational institutions, healthcare facilities, office complexes, and industrial environments with sophisticated air circulation systems, this detector monitors air streams for potential fire conditions before smoke can spread through building ventilation networks.
Key Features
- Intelligent addressable communication protocol compatible with Fire-Lite LiteSpeed panels
- Remote test capability enables comprehensive system diagnostics without physical access
- Low-profile white housing designed for discrete installation within HVAC ductwork
- Advanced photoelectric sensing technology minimizes nuisance alarms
- Compliant with UL 268 and NFPA 72 standards for duct smoke detection
- Integrated LED indicator for visual status monitoring and troubleshooting
Specifications
- Operating Voltage: 15-32 VDC
- Current Draw: Standby @ 24VDC: 250µA; Alarm: 6mA
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
- Humidity Range: 10% to 93% non-condensing
- Mounting: Direct duct mounting with included hardware
Professional fire alarm technicians will appreciate the SD365R’s robust design and sophisticated detection capabilities. Its intelligent addressable architecture allows for precise location identification and comprehensive system monitoring, enabling faster response times and enhanced life safety protocols in critical infrastructure environments.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 5.5 × 5 × 2 in |
| Condition | New |
| Manufacturers | Fire-Lite |
| Part Type | Photoelectric Smoke Detector |
