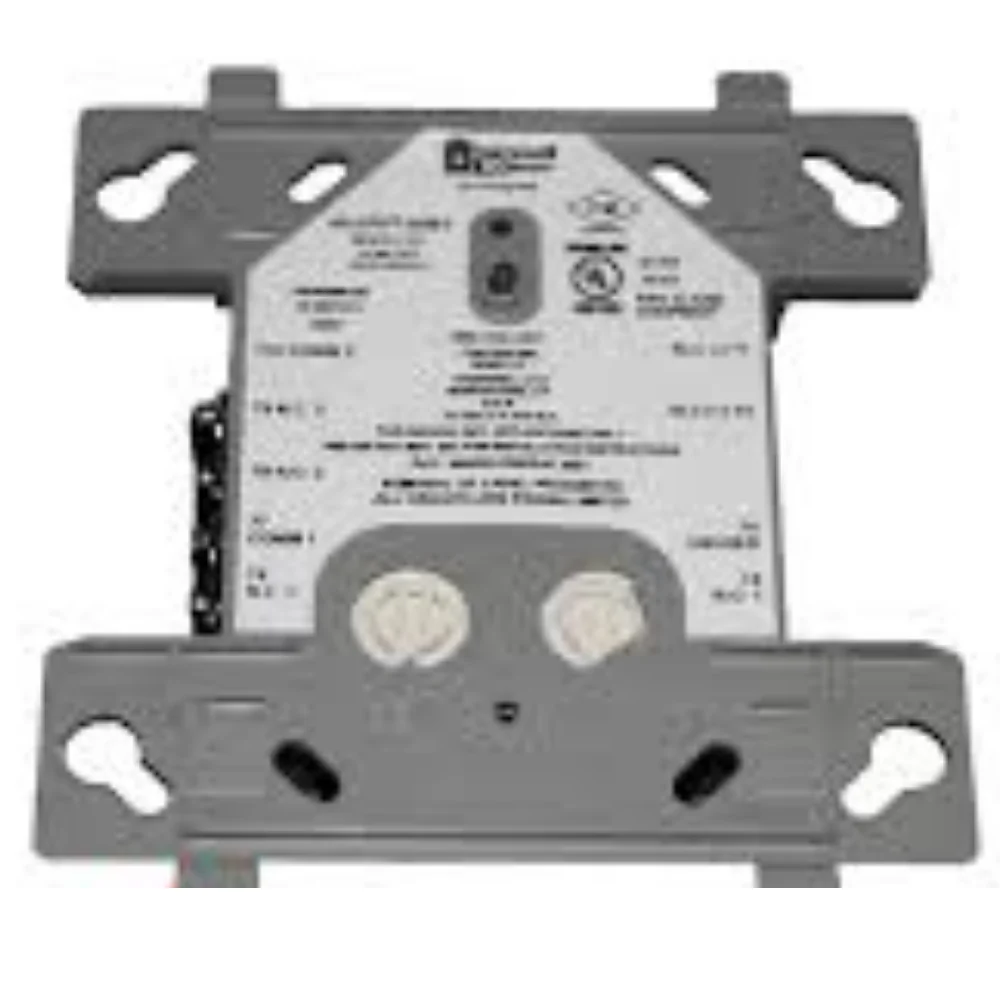

The Gamewell-FCI AOM-2RF Addressable Output Relay Control Module is a precision-engineered solution for advanced fire alarm and building safety control systems. Designed for integration with Gamewell-FCI addressable fire alarm panels, this module provides critical relay control functionality across complex commercial and institutional environments, enabling sophisticated monitoring and activation of secondary emergency systems.
Engineered for reliable performance in high-stakes fire detection and notification scenarios, the AOM-2RF offers sophisticated relay control capabilities for HVAC shutdown, door release, elevator recall, and other critical infrastructure management functions. Its addressable architecture allows for precise, individual device monitoring and control within comprehensive fire alarm networks, making it an essential component for facilities requiring granular emergency response management.
Key Features
- Two independently controllable Form-C relay outputs with configurable activation parameters
- Compatible with Gamewell-FCI ES-50X and NET-AX addressable fire alarm control panels
- Supervised circuit design with continuous monitoring for wire integrity and device status
- Programmable relay response modes including latching, non-latching, and synchronized activation
- Wide operating temperature range (-20°F to 150°F) for diverse installation environments
- UL 864 listed for critical life safety applications
Technical Specifications
- Operating Voltage: 24VDC nominal
- Maximum Relay Contact Rating: 2A @ 30VDC resistive
- Module Dimensions: 6.5″ x 4.5″ x 1.5″
- Communication Protocol: CLIP/SLC addressable communication
Typical installation contexts include commercial office complexes, healthcare facilities, educational institutions, and industrial environments requiring advanced fire alarm system integration. The AOM-2RF supports comprehensive emergency management strategies outlined in NFPA 72 fire alarm and signaling code requirements.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2.14 lbs |
|---|---|
| Dimensions | 2 × 4 × 5 in |
| Condition | New |
| Manufacturers | Gamewell-FCI |
| Part Type | Control Module |
