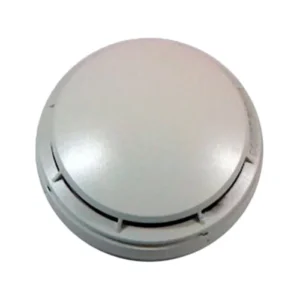

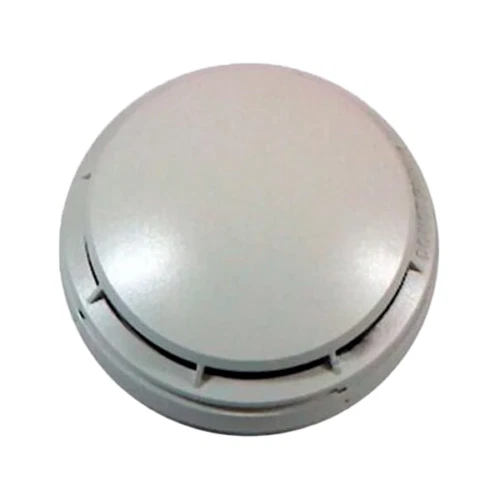

The Simplex GSA4098-9714 SSD Photo Sensor represents a critical component in advanced fire detection systems, engineered for precise smoke identification and seamless integration with modern addressable fire alarm panels. Designed for commercial and institutional environments, this photoelectric sensor provides reliable early-stage smoke detection through sophisticated optical sensing technology.
Compatible with Simplex intelligent addressable fire alarm networks, the 4098-9714 utilizes sophisticated scattered light detection principles to identify potential fire conditions across diverse environmental scenarios. Its American-assembled construction ensures high-reliability performance meeting stringent life safety standards for commercial, industrial, and institutional applications.
Key Features
- Advanced photoelectric sensing technology with high-precision optical chamber
- Full compatibility with Simplex intelligent addressable fire alarm systems
- GSA-rated manufacturing with Made in America components
- Interchangeable with legacy Simplex 4098-9714 sensor bases
- Low-profile design optimized for suspended ceilings and restricted mounting spaces
- Enhanced environmental compensation to minimize nuisance alarm triggers
Technical Specifications
- Operating Voltage: 15-32 VDC
- Standby Current: 200 µA maximum
- Alarm Current: 6 mA typical
- Operating Temperature: 32°F to 100°F (0°C to 38°C)
- Relative Humidity: 10% to 93% non-condensing
Compliant with critical industry standards including NFPA 72, UL 268 (Smoke Detectors for Fire Protective Signaling Systems), and UL 464 (Audible Signaling Devices). Ideal for installation in commercial office complexes, healthcare facilities, educational institutions, and mission-critical infrastructure environments requiring sophisticated smoke detection capabilities.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.33 lbs |
|---|---|
| Dimensions | 4.4 × 4.4 × 2 in |
| Condition | New |
| Manufacturers | Simplex |
| Part Type | Detector Base |
