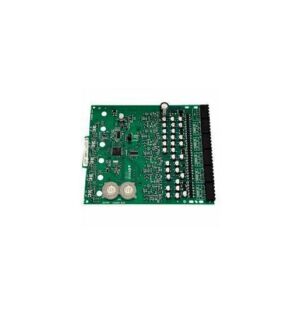

The Mircom IM-10 is an intelligent addressable ten-input monitor module engineered for Mircom® FleX-Net fire alarm systems. The IM-10 allows up to ten separate dry contact inputs to be monitored from a single Mircom Signaling Line Circuit (SLC) address point, dramatically improving address-point efficiency in large or complex fire alarm installations.
Typical applications for the IM-10 include monitoring multiple sprinkler valve tamper switches, waterflow detectors, door holder contacts, or other supervisory dry-contact devices from a single module address. This makes the IM-10 an ideal choice for large commercial buildings, warehouses, or campus environments with many supervised devices.
- Module Type: Ten-input addressable monitor module
- Inputs: 10 supervised dry contact inputs per module
- SLC Address Usage: Single address point for all ten inputs
- Protocol: Mircom proprietary SLC (addressable)
- System Compatibility: Mircom FleX-Net FX-2000, FX-2003, FX-351, FX-353
- Application: Multi-point supervisory monitoring (tamper, waterflow, door holders)
- See Also: MIX-M501MAP for single-input compact monitoring
Contact Life Safety Consultants for IM-10 pricing, availability, and FleX-Net system design support.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | .025 lbs |
|---|---|
| Dimensions | 4 × 4 × 2 in |
| Condition | New |
| Manufacturers | Mircom |
| Compatible Panels | FX-2000, FX-2003, FX-351, FX-353 |
| Compatible Bases | N/A |
| Cross Reference | MIX-M501MAP |
| Type | Ten-input monitor module, Inputs: 10 dry contacts per single SLC address, Protocol: Mircom SLC addressable, System: FleX-Net |
