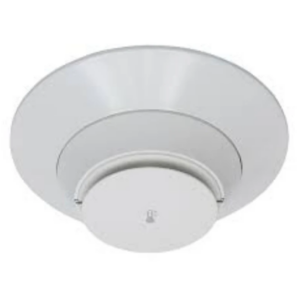

The Mircom MIX-5351AP is an intelligent fixed-temperature heat detector. Specifically, it activates at 135°F (57°C) using a thermistor sensing circuit. As a result, response is fast and consistent across the listed range. In addition, the detector is field programmable through rotary address switches.
Mircom MIX-5351AP protocol and listing
First, the detector uses Mircom’s Advanced Protocol (AP) for fast intelligent communication. Then, it also supports CLIP mode for legacy panel compatibility. Therefore, the MIX-5351AP fits both new AP systems and older retrofits. Furthermore, the unit is UL 521 listed for heat detection service. Also, dual LEDs provide 360-degree status visibility from below.
Physical specifications
The detector stands 2.0 inches (51 mm) tall installed on a B300-6 or B300A-6 base. In addition, the head measures 6.2 inches (156 mm) in diameter. Furthermore, the shipping weight is 3.4 ounces (95 grams). For environmental rating, the operating range runs from -4°F to 100°F (-20°C to 38°C).
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.6 lbs |
|---|---|
| Condition | New |
| Manufacturers | Mircom |
| Part Type | Heat Detector |
