NOTIFIER (RLD) Remote display

NOTIFIER (RLD) Remote display

General

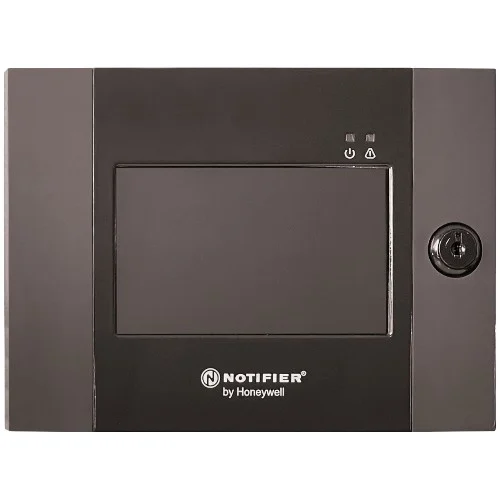

The Notifier RLD is a mimic annunciator for the NOTIFIER INSPIRE™ Series fire alarm control panels (FACP) or NCD (Network Control Display). This provides the FACP or NCD with remote, serially connected display. A five inch touchscreen display provides system status, point information, and event counters. The display shows two events simultaneously, and pages through up to 50 of the highest priority events in the system. The RLD also provides system control with six programmable soft touch buttons as well as Acknowledge, Silence, Reset and Drill.

Features

• Five inch high-definition touchscreen display
• Programmer key switch for user authentication, providing the ability to enable the control inputs for acknowledge, silence, reset, and drill.
• Configurable control buttons that are operational only when keyswitch is unlocked– Acknowledge– Silence– Reset– Drill
• Six programmable buttons, each with a descriptor/label, status indicator and configurable action (on/off, disable.enable)
• Supervision of remote power supply • Field programmable using VeriFire® Tools and interactive touchscreen controls
• USB C Connection
• Ability to filter events displayed on the RLD by zone
• Ability to map the RLD dedicated to a releasing zone where the label, state of the releasing zone and the countdown timer (where applicable) is displayed
• RLD mounts in a standard 3 gang electrical box
• Certified for seismic applications when used with the appropriate seismic mounting kit.
• Positive Alarm Sequence (PAS) Presignal. Participation in network or local PAS as programmed in the panel or NCD.
• Presignal participation
• Signal Silence Inhibit and Automatic Signal Silence timer options
• Meets Canadian ULC display requirements.
• Programmable DRILL (FIRE DRILL for ULC) participation and Alarm signal ON (ULC Specific) support
• Option to display events by zone with event count per zone (ULC Specific)
• Support for Display and Control Center (DCC) functionality (ULC Specific)
• Follows the language selection on the panel English, Canadian French, Spanish, and Portuguese
