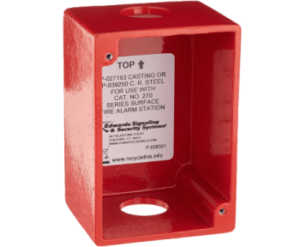

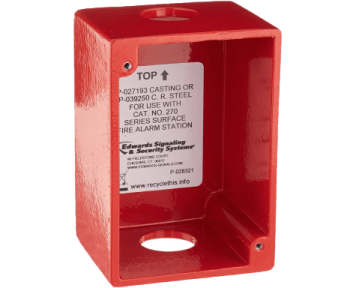

The Edwards P-027193 is the cast surface back box for 270 Series fire alarm pull stations. First, it lets installers mount a 270-Series pull station on a finished wall. Then, it serves as a rugged housing where flush mounting is impractical.
The 270 Series typically mounts on a 4-inch (102 mm) square box with a single-gang plaster cover. However, the P-027193 cast box provides an alternative for surface installations. In addition, a steel back-box option (P-039250) is available for the same purpose.
Edwards P-027193 Key Features
- Die-cast construction matching the 270 Series pull station finish
- Designed specifically for 270-SPO, 270-DPO, and 270-DOC pull stations
- Surface-mount alternative to flush installation in a 4-inch square box
- Listed by Edwards in the 270 Series catalog page as the cast back-box accessory
- Compatible with the STI-3150 protective pull station enclosure for harsh environments
Compatibility
- Edwards 270-SPO single-pole normally-open pull station
- Edwards 270-DPO double-pole normally-open pull station
- Edwards 270-DOC double-pole normally-open/normally-closed pull station
- Accessory glass rods: 270-GLR (pack of 20 replacement glass rods)
Specification Notes
The P-027193 is a passive back box. Therefore, it carries no standalone UL listing of its own. Instead, agency compliance flows through the parent 270 Series pull station, which is UL Listed and (for 270-SPO) CSFM Listed. Furthermore, dimensions beyond the 4-inch square footprint are not published in the 270 Series catalog page.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 6 × 6 × 4 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Replacement Part |
