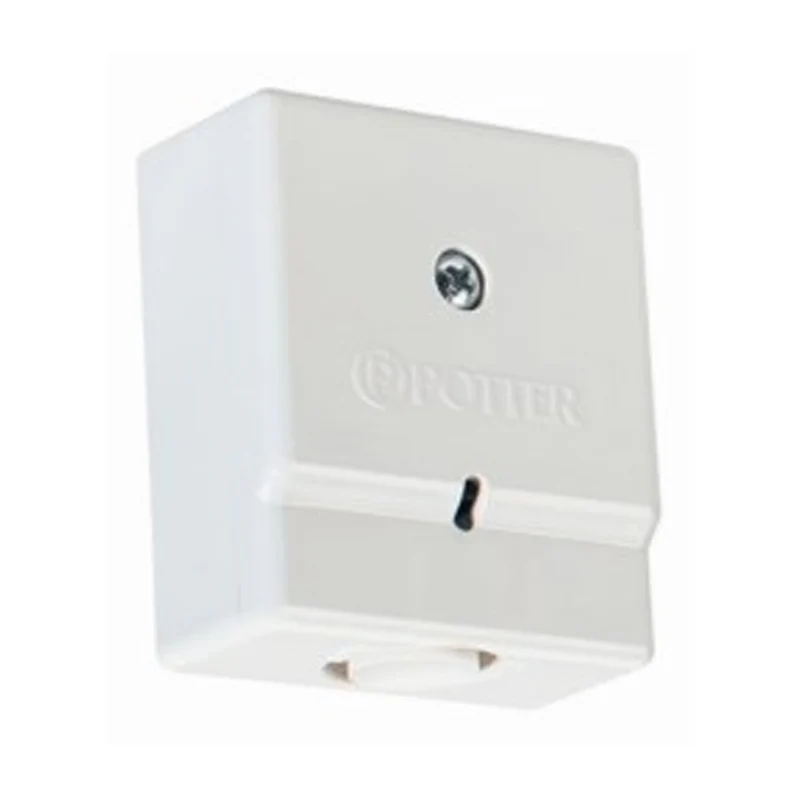

The POTTER HUB-M-REP is a single-button hold-up switch for security and intrusion systems. First, it gives staff a discreet way to signal a silent alarm. Specifically, a person presses one button to trigger the connected system. As a result, monitoring or response can begin without alerting an intruder. This unit is the replacement version of the Potter HUB-M.
How the POTTER HUB-M-REP Works
The switch provides DPDT contacts in either momentary or latching operation. Therefore, it can actuate surveillance cameras or other security devices. The compact ABS housing mounts easily at a desk, counter, or teller window. However, it is rated for indoor use only. In addition, avoid installing it in coolers, freezers, or outdoor locations.
Specifications
- Type: single-button hold-up (panic) switch, replacement unit
- Contacts: DPDT, momentary or latching
- Switch rating: 3 A at 28V DC/AC; 0.05 A at 125V DC resistive
- Dimensions: 2″ W x 2-5/16″ L x 1″ H
- Weight: 1.5 oz
- Enclosure: ABS plastic
- Operating temperature: 32°F to 140°F, 85% max humidity
- Listings: UL and ULC Listed
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.6 lbs |
|---|---|
| Dimensions | 4 × 3 × 2 in |
| Condition | New |
| Manufacturers | Potter |
| Part Type | Replacement Part |
