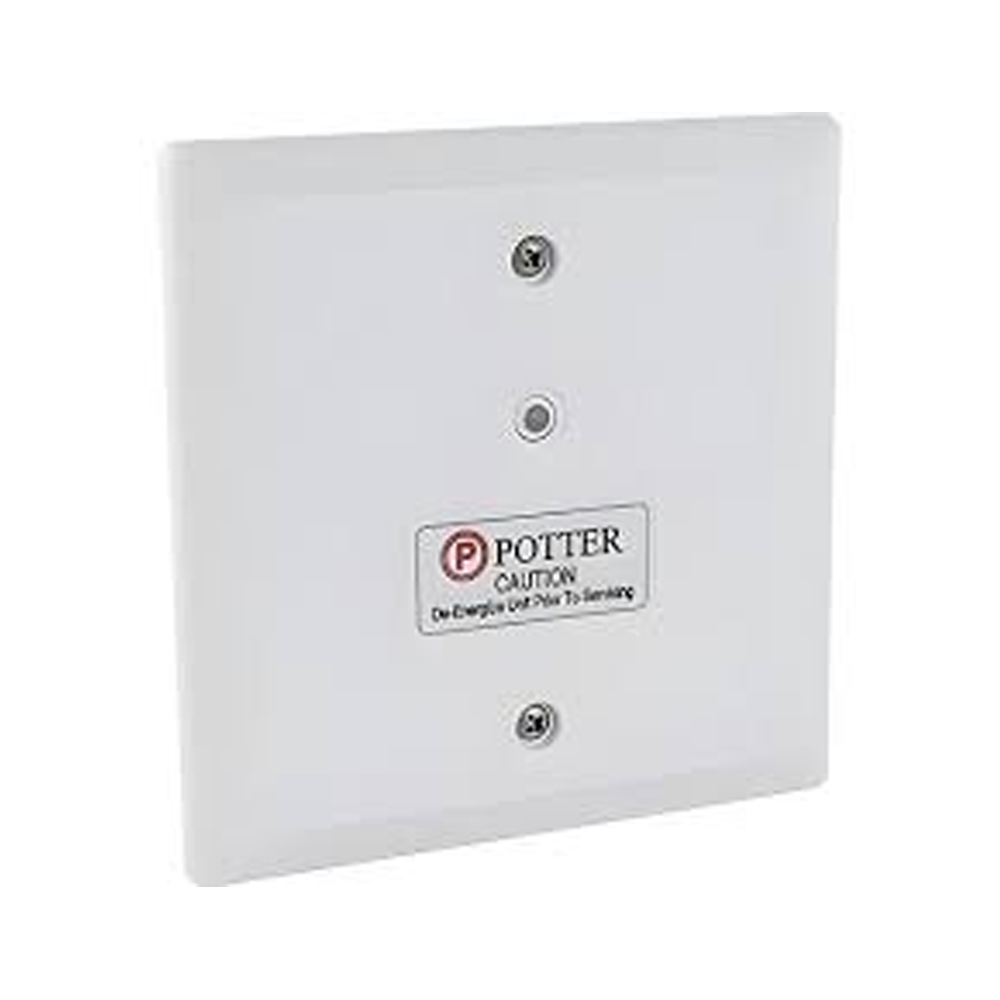

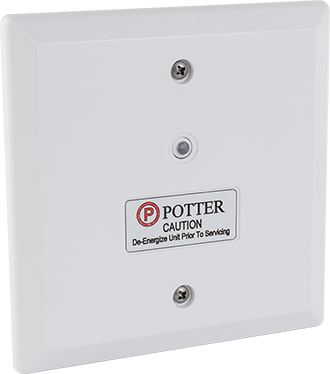

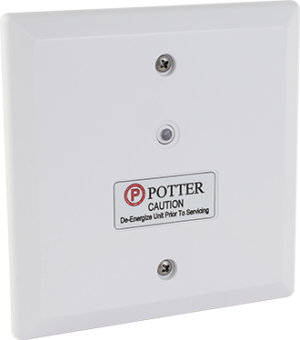

The Potter PAD300-IM Isolator Module is a critical component designed for advanced fire alarm communication and protection in complex commercial addressable systems. This intelligent module provides electrical isolation between circuit segments, preventing potential short circuits and minimizing system-wide communication disruptions during fault conditions.
Engineered for reliable performance in demanding commercial environments, the PAD300-IM ensures consistent signal transmission across fire alarm networks in applications ranging from multi-story office complexes to healthcare facilities, educational institutions, and large industrial installations. Its robust design allows seamless integration with compatible addressable fire alarm control panels, maintaining comprehensive emergency detection and notification capabilities.
Fire alarm technicians and system designers rely on the PAD300-IM to enhance network reliability, segment circuit loads, and provide critical isolation points that prevent single-point failures from compromising entire alarm infrastructures.
Key Features
- Advanced electrical isolation for addressable fire alarm circuit segments
- Compatible with standard commercial fire alarm control panels and communication protocols
- Meets stringent NFPA 72 National Fire Alarm and Signaling Code requirements
- UL Listed for commercial fire protection applications
- Low current consumption with minimal voltage drop
- Compact design for simplified panel and raceway installation
Technical Specifications
- Operating Voltage: 24V DC nominal
- Current Draw: < 250μA in standby mode
- Temperature Range: 32°F to 120°F (0°C to 49°C)
- Humidity Tolerance: 10% to 93% non-condensing
- Agency Listings: UL, CSFM, MEA
Typical installation contexts include addressable fire alarm networks in commercial office buildings, healthcare facilities, educational campuses, manufacturing plants, and government structures where circuit integrity and comprehensive monitoring are paramount.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 5.5 × 5.5 × 1.5 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Module |
