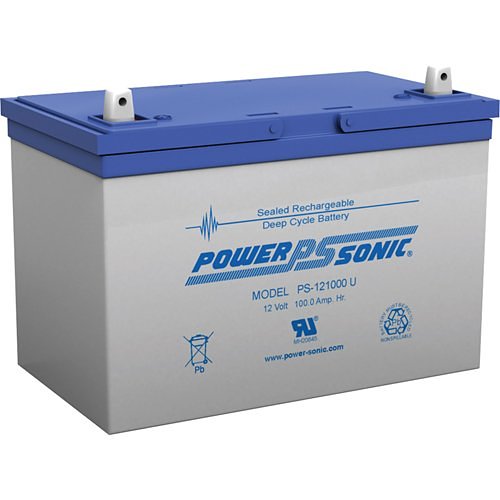

The Power Sonic PS-121000 M6 is a 12V 100Ah sealed lead acid (SLA / VRLA) battery with M6 button terminals. First, it provides general-purpose standby and light-cyclic backup power. Typical uses include fire and security panels, emergency lighting, and UPS systems. Then, the maintenance-free AGM construction ships in an ABS case ready for installation.
How the Power Sonic PS-121000 M6 is used
Therefore, integrators select this battery when a panel requires 12V 100Ah backup with bolt-down M6 terminals. In addition, the absorbent glass mat (AGM) design lets the battery operate in any orientation. As a result, the PS-121000 M6 fits cabinets where access space is limited but secure threaded connections are required.
PS-121000 M6 specifications
- Nominal voltage: 12.0 V (6 cells)
- Nominal capacity: 100.0 Ah at 20-hour rate (5.0 A to 10.8 V)
- Terminals: M6 threaded button (bolt-down)
- Chemistry: AGM sealed lead acid (VRLA), maintenance-free
- Case: ABS (UL94 HB; V-0 optional)
- Dimensions: L 12.05″ (306 mm) × W 6.61″ (168 mm) × H 8.19″ (208 mm); total height 8.43″ (214 mm)
- Weight: 67.46 lb (30.6 kg)
- Internal resistance: approx. 5.8 mΩ
- Max short-circuit current: 2185 A
- Charge temperature: -4°F to 104°F (-20°C to 40°C)
- Discharge temperature: 5°F to 122°F (-15°C to 50°C)
- Float charge: 13.5-13.8 V at 20°C; cycle charge: 14.1-14.7 V at 20°C
- Approvals: UL Recognized, UL 1989, UN2800 non-spillable, IEC 60896, RoHS, REACH, Prop 65
Typical applications
Also, common uses include fire alarm panel backup, security system standby, emergency lighting, and UPS replacement. Finally, the recommended Power Sonic charger is the PSC-126000ACX.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 67.5 lbs |
|---|---|
| Dimensions | 12.05 × 6.61 × 9.06 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Battery |
