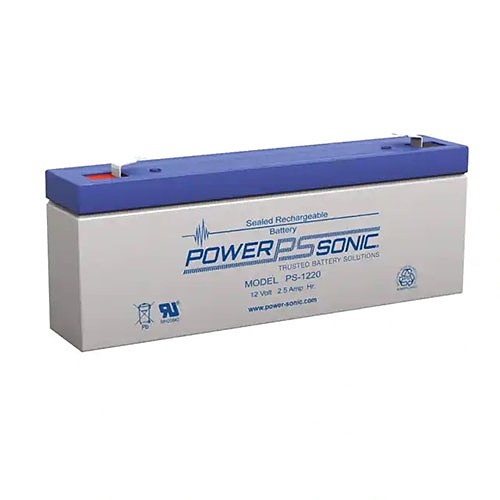

The Power Sonic PS-1220 F1 is a 12V, 2.5 Ah sealed lead acid (SLA / VRLA) battery. Specifically, it ships with F1 (0.187″ / 4.75 mm) quick-disconnect tabs. First, it supplies standby power for small fire alarm and security panels, emergency lighting, and portable equipment. Then, the AGM construction allows installation in any orientation.
How the Power Sonic PS-1220 F1 is used
Therefore, integrators specify the PS-1220 when a panel calls for a small 12V/2.5Ah SLA. Also, the long, narrow form factor fits compact enclosures. In addition, F1 tab terminals match standard quick-connect leads on most low-current panel batteries. As a result, the battery handles light-cyclic and float duty in small life-safety equipment.
PS-1220 F1 product details
- Nominal voltage: 12.0 V (6 cells)
- Nominal capacity: 2.5 Ah at 20-hr rate
- Terminals: F1 quick-disconnect tab (0.187″ / 4.75 mm)
- Chemistry: AGM sealed lead acid (VRLA), maintenance-free
- Case: ABS
- Dimensions: 7.00 in (L) × 1.38 in (W) × 2.36 in (H) (178 × 35 × 60 mm)
- Approximate weight: 2.1 lb (0.95 kg)
- Float charge: 13.5-13.8 V at 20°C; cycle charge: 14.1-14.7 V at 20°C
- Operating temperature: charge -4°F to 104°F (-20°C to 40°C); discharge 5°F to 122°F (-15°C to 50°C)
- Approvals: UL Recognized, UN2800 non-spillable; consult Power-Sonic for current detail
Typical applications
Specifically, common uses include small fire/security panel backup, emergency lighting heads, alarm standby, and portable medical or test equipment. Finally, confirm physical fit and current Ah rating against the Power-Sonic PS-1220 datasheet before ordering.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2.43 lbs |
|---|---|
| Dimensions | 7 × 1.38 × 2.56 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
