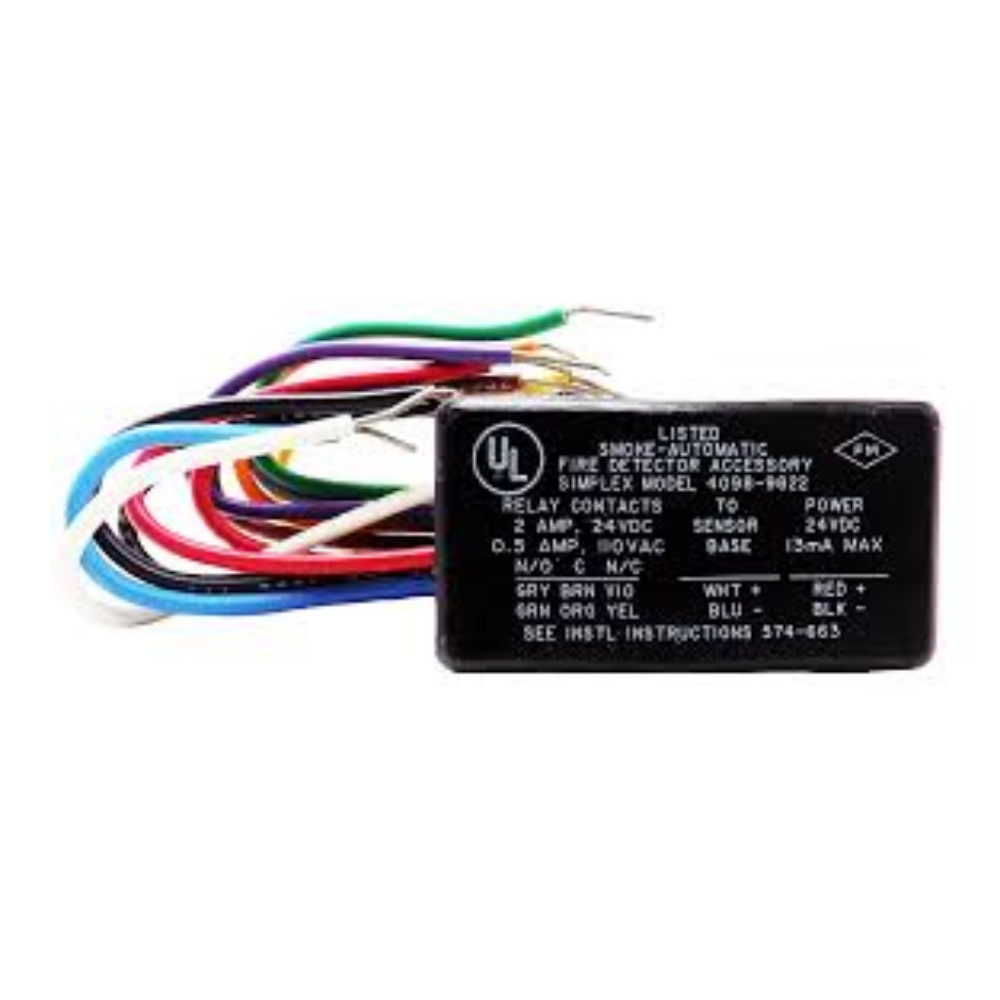

The Simplex 4098-9822 TrueAlarm Relay Module represents a critical component in advanced fire detection and notification systems, engineered specifically for complex commercial fire alarm infrastructures. Designed for seamless integration with addressable fire alarm panels, this relay module provides intelligent signal translation and interface capabilities across diverse building automation and life safety networks.
Professionally deployed in large-scale commercial environments such as office complexes, healthcare facilities, educational institutions, and industrial campuses, the 4098-9822 enables sophisticated interconnectivity between fire alarm detection devices and auxiliary control systems. Its precision-engineered architecture allows for precise monitoring and activation of secondary equipment like HVAC shutdown mechanisms, elevator recall systems, and emergency communication networks.
As a fundamental element in comprehensive fire detection strategies, this Simplex relay module transforms raw detection signals into actionable control outputs, ensuring rapid and coordinated emergency response protocols across complex facility infrastructures.
Key Features
- Addressable relay module compatible with Simplex TrueAlarm intelligent fire detection systems
- Configurable relay contacts supporting normally open (NO) and normally closed (NC) operational modes
- UL 864 and NFPA 72 compliant design for mission-critical life safety applications
- Low-voltage operation with minimal power consumption requirements
- Enhanced electromagnetic interference (EMI) and radio frequency interference (RFI) resistance
- Simple two-wire connection scheme for streamlined installation and system integration
Technical Specifications
- Operating Voltage: 24 VDC nominal
- Current Draw: Standby < 1 mA, Alarm < 20 mA
- Relay Contact Rating: 2A @ 30 VDC resistive
- Environmental Rating: Indoor, dry location use
- Temperature Range: 32°F to 120°F (0°C to 49°C)
- Humidity Tolerance: 10% to 93% non-condensing
Compliance and Certification
The Simplex 4098-9822 TrueAlarm Relay Module meets or exceeds the following industry standards:
- UL 864 – Control Units and Accessories for Fire Alarm Systems
- NFPA 72 – National Fire Alarm and Signaling Code
- UL 268 – Smoke Detectors for Fire Protective Signaling Systems
- FCC Part 15, Subpart B Class A emissions requirements
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.33 lbs |
|---|---|
| Dimensions | 4.8 × 2.2 × 2.2 in |
| Condition | New |
| Manufacturers | Simplex |
| Part Type | Smoke Detector |
