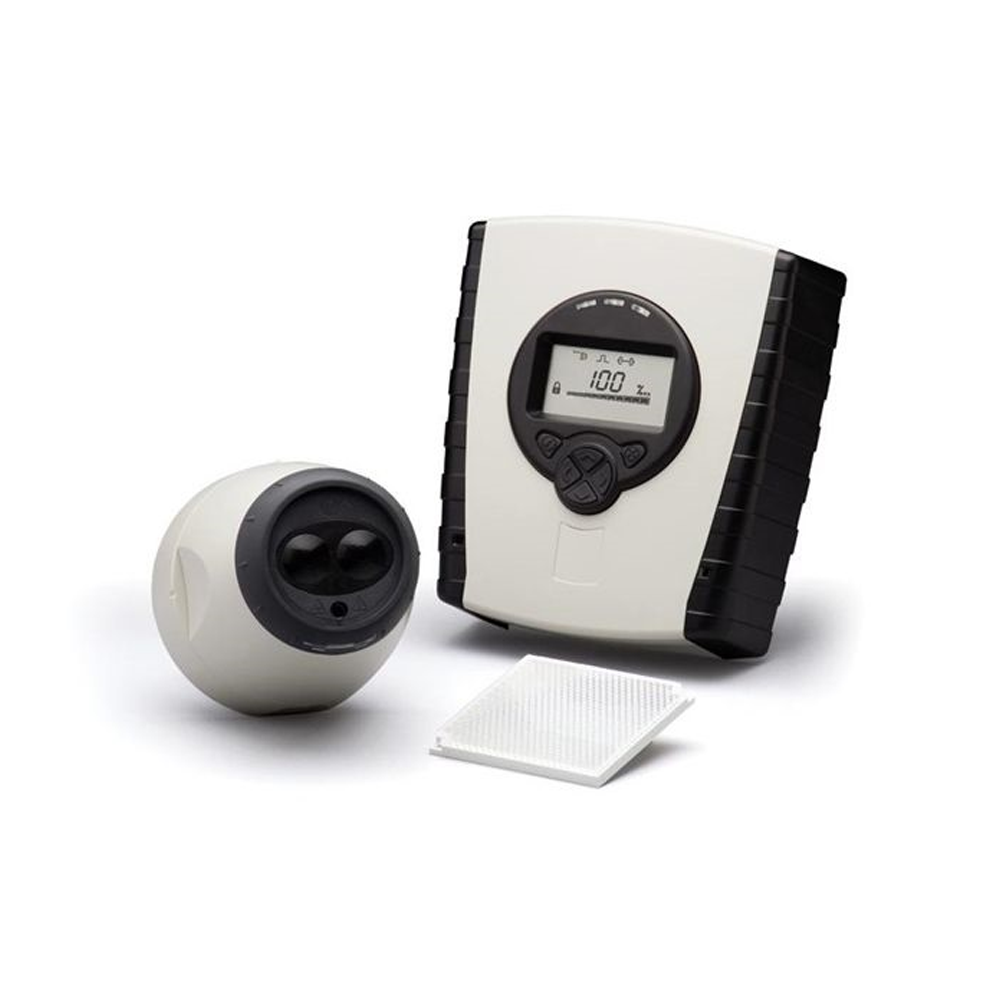

The SPACE AGE FE-5000-103 5000 Beam Auto Align with Control Cabinet represents a precision-engineered optical smoke detection solution designed for complex commercial fire detection environments. This advanced beam detector provides comprehensive coverage for large open spaces where traditional point detectors are impractical, such as high-ceiling warehouses, airport terminals, manufacturing facilities, and large commercial atrium areas.
Engineered with sophisticated auto-alignment technology, the 5000 Beam Auto Align eliminates traditional beam detector installation challenges by automatically compensating for minor structural movements and environmental variations. Its integrated control cabinet enables seamless integration with addressable fire alarm panels, providing reliable smoke detection across expansive horizontal and vertical spaces while maintaining exceptional sensitivity and precision.
Key Features
- Advanced auto-alignment mechanism reduces installation time and minimizes manual calibration requirements
- Comprehensive detection range up to 330 feet with 0.5% to 10% obscuration sensitivity
- Sealed optical system with robust environmental compensation for temperature and humidity variations
- Compatible with most major addressable fire alarm control panels and networking systems
- NFPA 72 compliant design with UL 268 listing for commercial smoke detection applications
- Microprocessor-based signal processing for enhanced false alarm rejection
Specifications
- Operating Voltage: 15-32 VDC
- Current Draw: Standby 250µA, Alarm 25mA
- Operating Temperature: 32°F to 122°F (0°C to 50°C)
- Relative Humidity: 10% to 93% non-condensing
- Mounting Configuration: Wall or ceiling mount with adjustable bracket
Ideal for commercial applications including high-rise office complexes, data centers, industrial facilities, and institutional buildings, the SPACE AGE FE-5000-103 offers fire alarm professionals a reliable, technologically advanced detection solution that meets stringent safety and performance standards.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 4.5 lbs |
|---|---|
| Dimensions | 16 × 12 × 7 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
