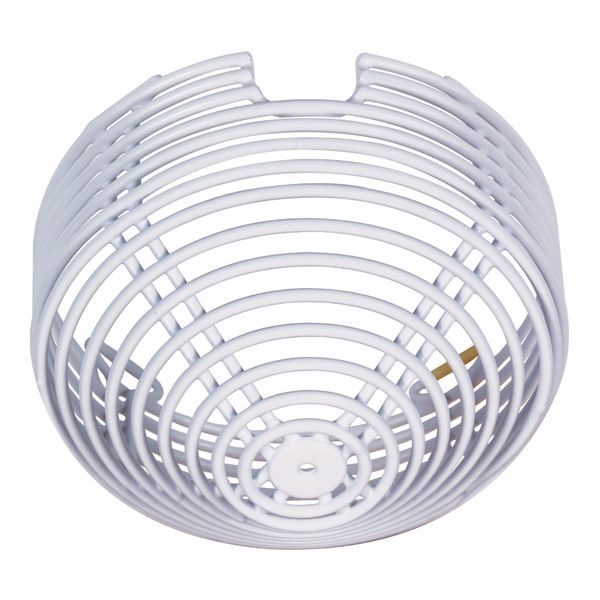

The STI STI-9712 is a surface-mount Steel Web Stopper® for photoelectric smoke detectors. This UL Listed wire guard prevents misuse, tampering, and accidental damage. However, the open web never blocks smoke from reaching the detector.
STI based the patented design (D368,670) on a spider’s web. Specifically, a web-like octagon of 9-gauge steel wire makes the cage extremely difficult to break. In addition, a corrosion-resistant polyester coating protects the steel.
STI STI-9712 Key Features
- 9-gauge steel wire with corrosion-resistant polyester coating
- Patented web-like octagon design resists severe abuse
- Surface mount, sized for photoelectric smoke detectors
- UL Listed (S3504); per STI, no detector sensitivity adjustment is required
- May be spray painted once before installation to match décor
- Three-year guarantee against breakage in normal use
Specifications
Dimensions are 7.3 in H x 7.3 in W x 4.8 in D. Also, the guard removes simply for routine detector servicing. See STI’s 9601-9713 spec sheet for the detector listing details.
Related Models and Accessories
For flush-mounted photoelectric detectors, choose the STI-9713 instead. Optional KIT-81 and KIT-82 tamper-resistant screws, the KIT-19038 tamper bit, and KIT-H19020 steel clamps are available.
Order the STI-9712 from Life Safety Consultants
Life Safety Consultants stocks STI protective covers and wire cages for contractors, facility managers, and fire alarm technicians nationwide. To order the STI-9712, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com for application help.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|
