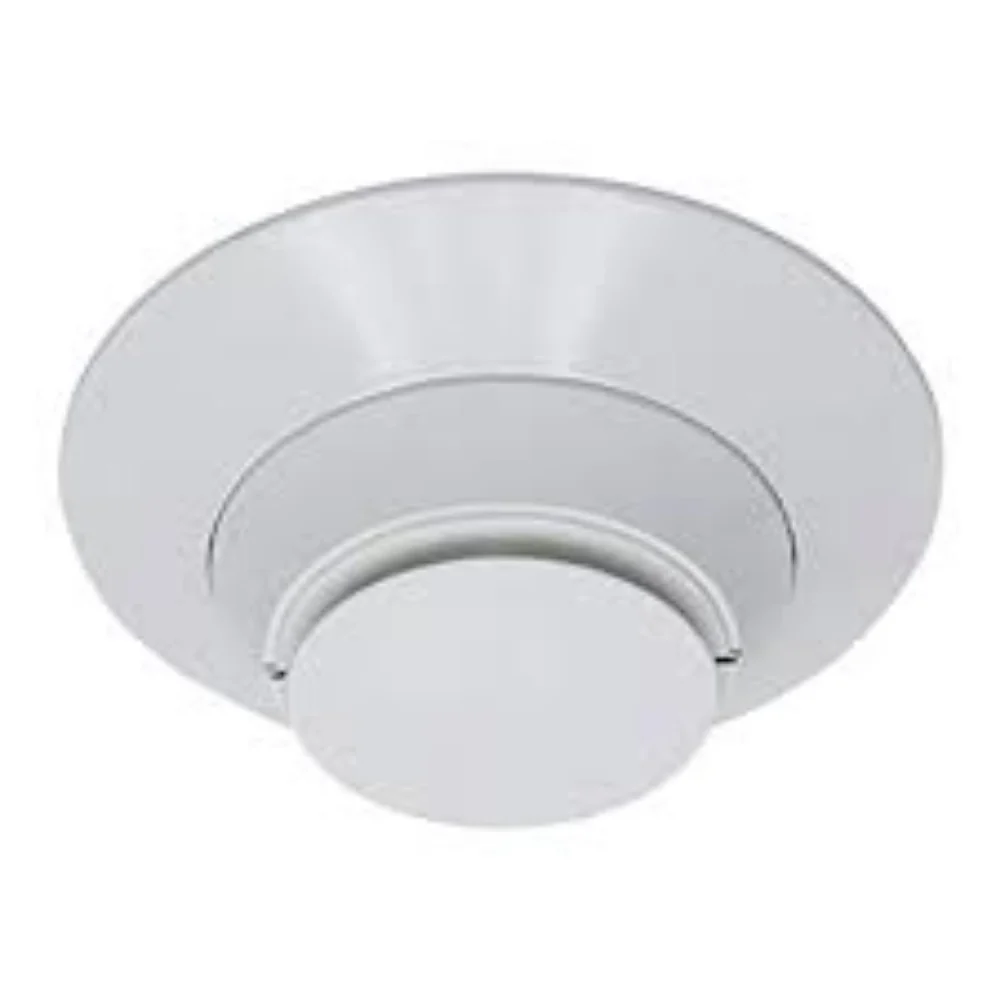

The Gamewell-FCI ASD-PL3 Velociti Analog Photoelectronic Sensor represents cutting-edge fire detection technology for sophisticated commercial and institutional fire alarm systems. Engineered for precision and reliability, this photoelectric smoke detector provides advanced detection capabilities within addressable fire alarm networks, offering exceptional early warning performance across complex environmental conditions.
Designed for seamless integration with Gamewell-FCI’s intelligent control panels, the ASD-PL3 delivers high-sensitivity smoke detection through advanced optical sensing technology. Its white architectural design allows discrete installation in commercial settings including office complexes, educational facilities, healthcare environments, and multi-story institutional buildings where rapid, accurate fire event detection is critical.
Key Features
- Analog addressable communication protocol compatible with most intelligent fire alarm control panels
- Advanced photoelectric sensing technology with minimal nuisance alarm potential
- Built-in drift compensation algorithm for maintaining consistent sensitivity over device lifetime
- Low-profile design with bright white aesthetic matching contemporary architectural standards
- UL 268 and NFPA 72 compliant for comprehensive fire detection reliability
- Direct mounting to standard electrical boxes with simple two-wire connection
Technical Specifications
- Operating Voltage: 15-32 VDC
- Standby Current: 250 µA typical
- Alarm Current: 6 mA maximum
- Color: Bright White
- Base Compatibility: Gamewell-FCI B200S addressable base
- Operating Temperature: 32°F to 100°F (0°C to 38°C)
Ideal for HVAC-integrated fire detection systems, the ASD-PL3 provides reliable performance in challenging environmental conditions. Its microprocessor-based design enables precise smoke particle analysis, distinguishing between actual fire events and potential nuisance triggers like cooking smoke or steam.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 2 in |
| Condition | New |
| Manufacturers | Gamewell-FCI |
| Part Type | Photoelectric Smoke Detector |
