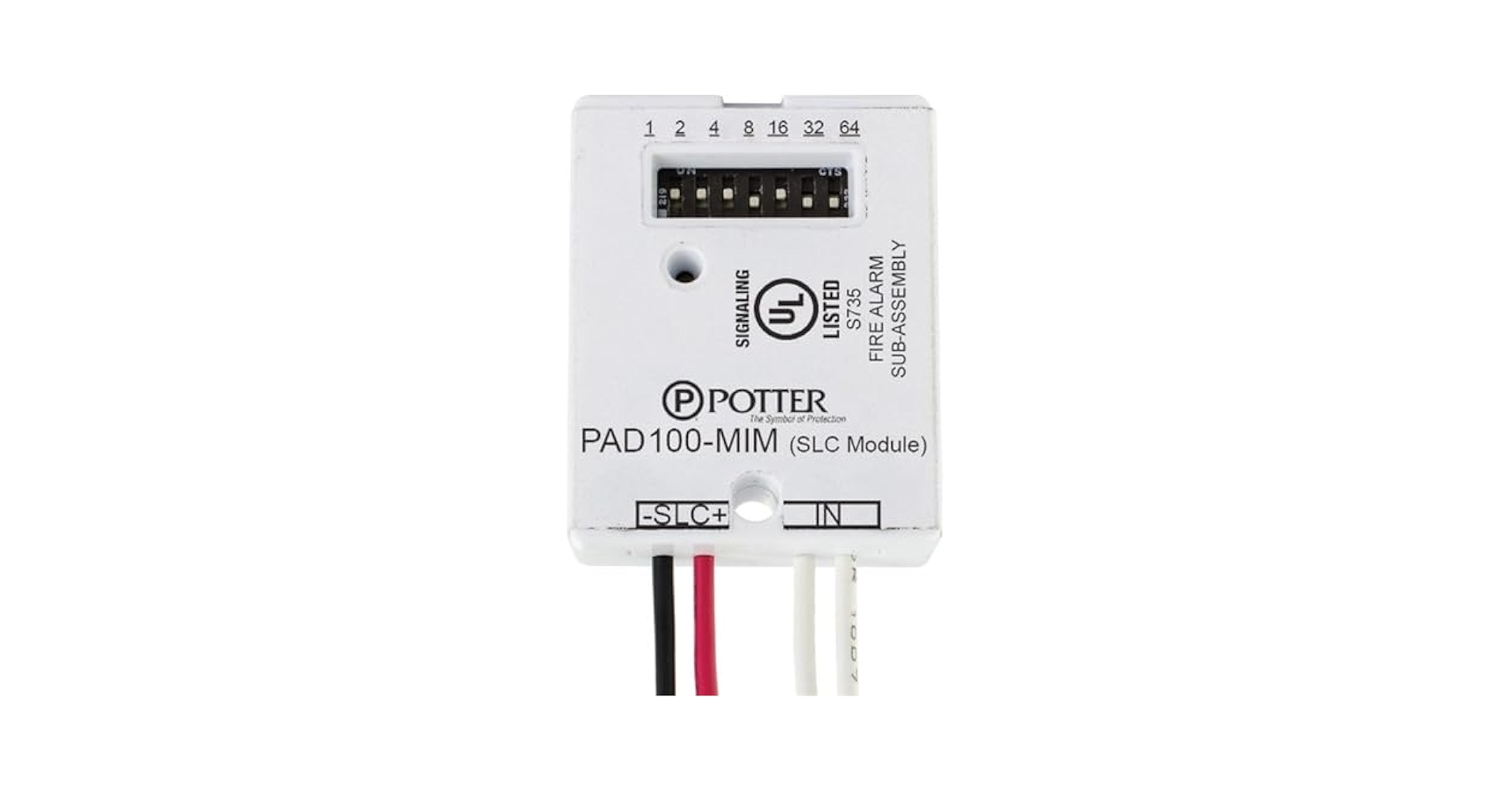

The Potter PAD100-MIM Micro Input Module is a critical component for expanding monitoring and interface capabilities within commercial fire alarm and life safety systems. Engineered for precise signal monitoring and device integration, this addressable input module provides reliable communication between peripheral sensors, initiating devices, and central fire alarm control panels across complex commercial environments.
Designed for seamless integration with Potter addressable fire alarm networks, the PAD100-MIM supports comprehensive monitoring of dry contact devices, supervisory circuits, and auxiliary input signals. Installers and facilities managers can leverage this module to enhance system intelligence by converting traditional non-addressable device inputs into intelligent, individually identifiable monitoring points within sophisticated fire detection architectures.
Typical installation scenarios include monitoring HVAC shutdown circuits, water flow switches, tamper switches, mechanical system interfaces, and auxiliary alarm inputs across multi-zone commercial facilities such as office complexes, healthcare campuses, educational institutions, and industrial environments.
Key Features
- Fully compatible with Potter addressable fire alarm control panels and network configurations
- Supports multiple input monitoring modes including normally open, normally closed, and end-of-line resistor configurations
- Individual device addressing for precise zone and circuit identification
- Low standby current consumption for enhanced system efficiency
- UL Listed and compliant with NFPA 72 National Fire Alarm and Signaling Code requirements
- Compact module design enables flexible mounting within electrical enclosures and control panels
Specifications
- Operating Voltage: 15-32 VDC
- Standby Current: Less than 350 µA
- Module Dimensions: 3.5″ x 2.25″ x 1.0″
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
- Relative Humidity: 10% to 93% non-condensing
Certified to critical safety standards including UL 268 (Smoke Detectors for Fire Protective Signaling Systems), UL 464 (Audible Signal Appliances), and NFPA 72, the Potter PAD100-MIM provides fire alarm professionals a reliable, intelligent input monitoring solution for complex commercial life safety infrastructure.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.07 lbs |
|---|---|
| Dimensions | 2 × 2 × 1 in |
| Condition | New |
