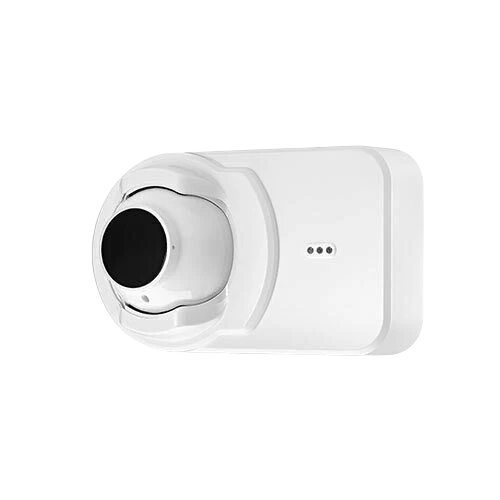

The Silent Knight OSI-RI-SK Intelligent Beam Detector represents advanced optical sensing technology specifically engineered for large commercial and industrial fire detection environments. Designed for precision and reliability, this intelligent beam detector provides comprehensive coverage for expansive spaces where traditional point detectors would be inefficient or impractical. By utilizing sophisticated infrared beam technology, the detector can monitor large areas with exceptional sensitivity, making it ideal for high-ceiling applications such as warehouses, manufacturing facilities, airplane hangars, and multi-story commercial complexes.
Fire alarm professionals will appreciate the detector’s advanced signal processing capabilities, which minimize false alarms while maintaining rapid and accurate smoke detection. The intelligent beam design allows for precise alignment and configuration, enabling installers to customize detection zones with minimal intrusion into the protected space. Compatible with Silent Knight’s intelligent addressable fire alarm panels, this detector integrates seamlessly into comprehensive life safety systems.
Key Features
- Advanced infrared beam technology with intelligent signal processing
- Compatible with addressable fire alarm control panels
- Configurable sensitivity levels for varied environmental conditions
- NFPA 72 compliant detection method for large area coverage
- Low maintenance design with integrated self-diagnostic capabilities
- Wide detection range suitable for spaces up to 330 feet
Technical Specifications
- Operating Voltage: 15-32 VDC
- Standby Current: 250µA typical
- Alarm Current: 6.5mA maximum
- Temperature Range: 32°F to 122°F (0°C to 50°C)
- Humidity: 10-93% non-condensing
Certified to UL 268 and UL 864 standards, the OSI-RI-SK provides fire alarm professionals with a reliable, intelligent detection solution for challenging commercial environments. Ideal for use with addressable fire alarm control panels in settings requiring extensive coverage and minimal false alarm potential.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 11 × 9 × 7 in |
| Condition | New |
| Manufacturers | Silent Knight |
| Part Type | Pull Station |
