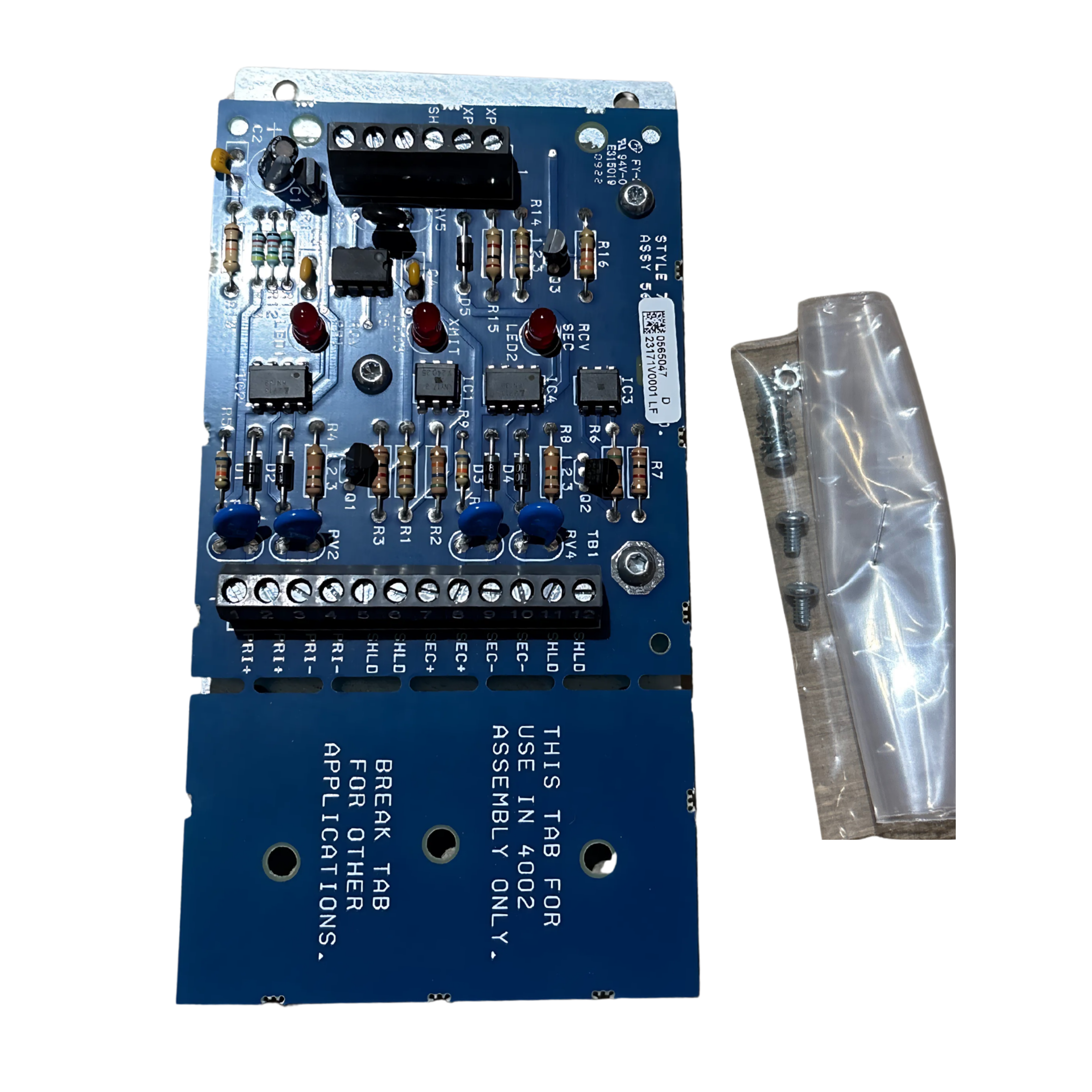

The Simplex 4100-0123 Style 7 Interface Module is a precision-engineered connectivity solution for complex fire alarm and building safety networks. Designed specifically for commercial and institutional environments, this interface module provides critical signal translation and system integration capabilities across addressable fire alarm panels and peripheral safety devices.
Engineered for high-reliability commercial applications, the 4100-0123 enables seamless communication between different subsystems within comprehensive fire detection and notification infrastructures. Professional installers can utilize this module to establish reliable connections between fire alarm control panels, initiating devices, notification appliances, and building management systems with exceptional signal integrity and performance.
Key Features
- NFPA 72 compliant Style 7 interface module with addressable communication protocol
- Compatible with Simplex 4100 series fire alarm control panels and networked systems
- Supports bidirectional communication for advanced system diagnostics and monitoring
- Configurable input/output options for flexible system integration
- Low-voltage design optimized for commercial and institutional installations
- Enhanced electromagnetic interference (EMI) resistance for reliable performance
Technical Specifications
- Operating Voltage: 24V DC nominal
- Maximum Current Draw: 350 mA
- Operating Temperature Range: 32°F to 120°F (0°C to 49°C)
- Relative Humidity: 10% – 93% non-condensing
- Dimensions: Compact form factor, standard mounting configuration
Compliance and Certification
The Simplex 4100-0123 Interface Module meets or exceeds the following industry standards:
- NFPA 72 – National Fire Alarm and Signaling Code
- UL 268 – Smoke Detectors for Fire Protective Signaling Systems
- UL 464 – Audible Signaling Appliances
- UL 38 – Manually Actuated Signaling Boxes
Typical installation environments include commercial office complexes, healthcare facilities, educational institutions, government buildings, and industrial complexes requiring sophisticated fire detection and communication infrastructure.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 13.5 × 10.5 × 3 in |
| Condition | New |
| Manufacturers | Simplex |
| Part Type | Interface Module |
