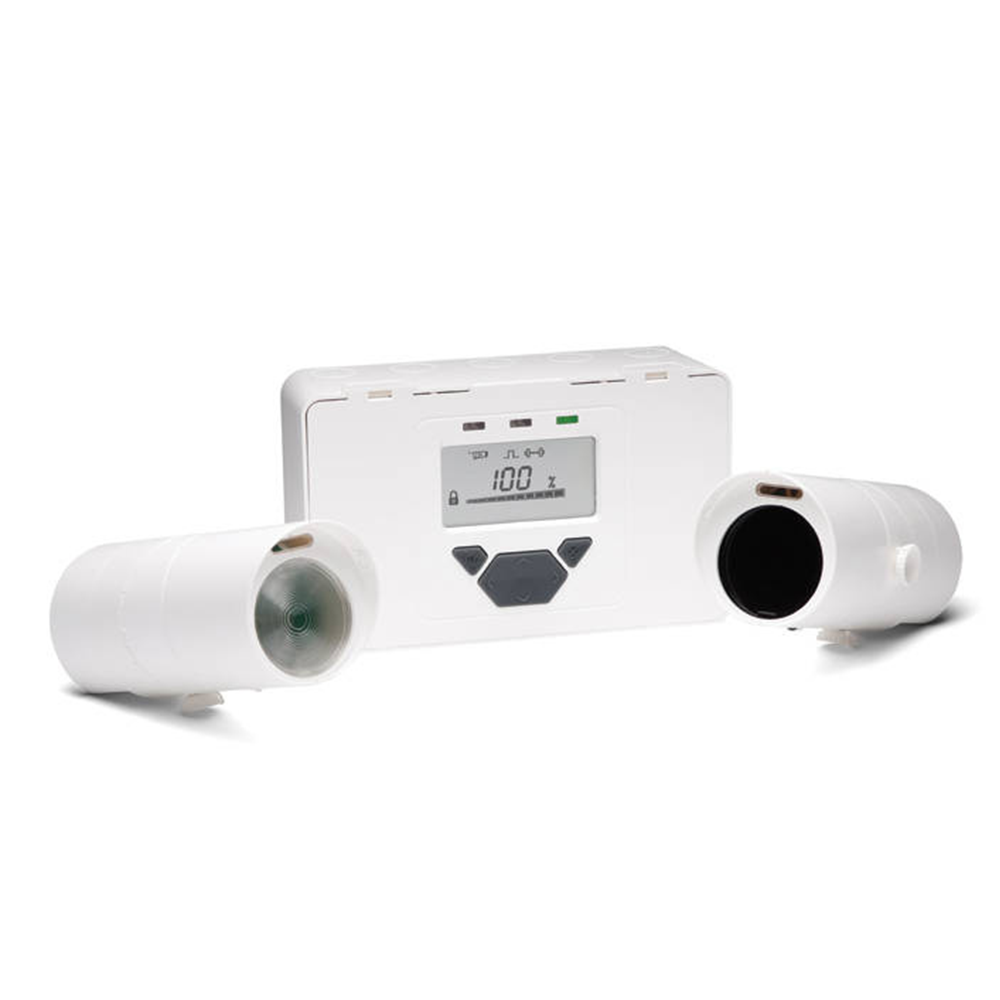

The SPACE AGE FE-3000-103 Signal Channel System represents a precision-engineered projection beam detector designed for advanced fire detection in complex commercial environments. Engineered for seamless integration with addressable fire alarm control panels, this 24 VDC signal channel component provides comprehensive area surveillance for large interior spaces where traditional point detectors may be insufficient.
Ideal for high-ceiling facilities such as warehouses, manufacturing plants, atriums, and large commercial complexes, this projected beam detector offers expansive detection coverage with exceptional reliability. The system utilizes advanced optical alignment technologies to create a continuous infrared detection zone, enabling precise fire event identification across significant architectural spaces.
Key Features
- Advanced infrared beam detection with up to 330-foot linear coverage range
- Compatible with standard 24 VDC addressable fire alarm control panels
- Automatic optical alignment and drift compensation mechanisms
- Compliant with NFPA 72 fire detection standards and UL 268 requirements
- Robust environmental performance: -4°F to 122°F operating temperature range
- Designed for challenging architectural environments including high ceilings and complex geometric spaces
Specifications
- Operating Voltage: 24 VDC
- Detection Range: 10 to 330 feet
- Response Time: <5 seconds typical
- Mounting Configuration: Wall or ceiling mount
- Environmental Rating: Indoor use, NEMA 4X equivalent
Professional fire alarm installers will appreciate the FE-3000-103’s precision engineering, which minimizes false alarm potential while delivering comprehensive detection capabilities. The system’s sophisticated signal processing algorithms enable reliable performance in environments with potential optical interference or challenging architectural characteristics.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 5.5 lbs |
|---|---|
| Dimensions | 18.5 × 13.5 × 11.5 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
