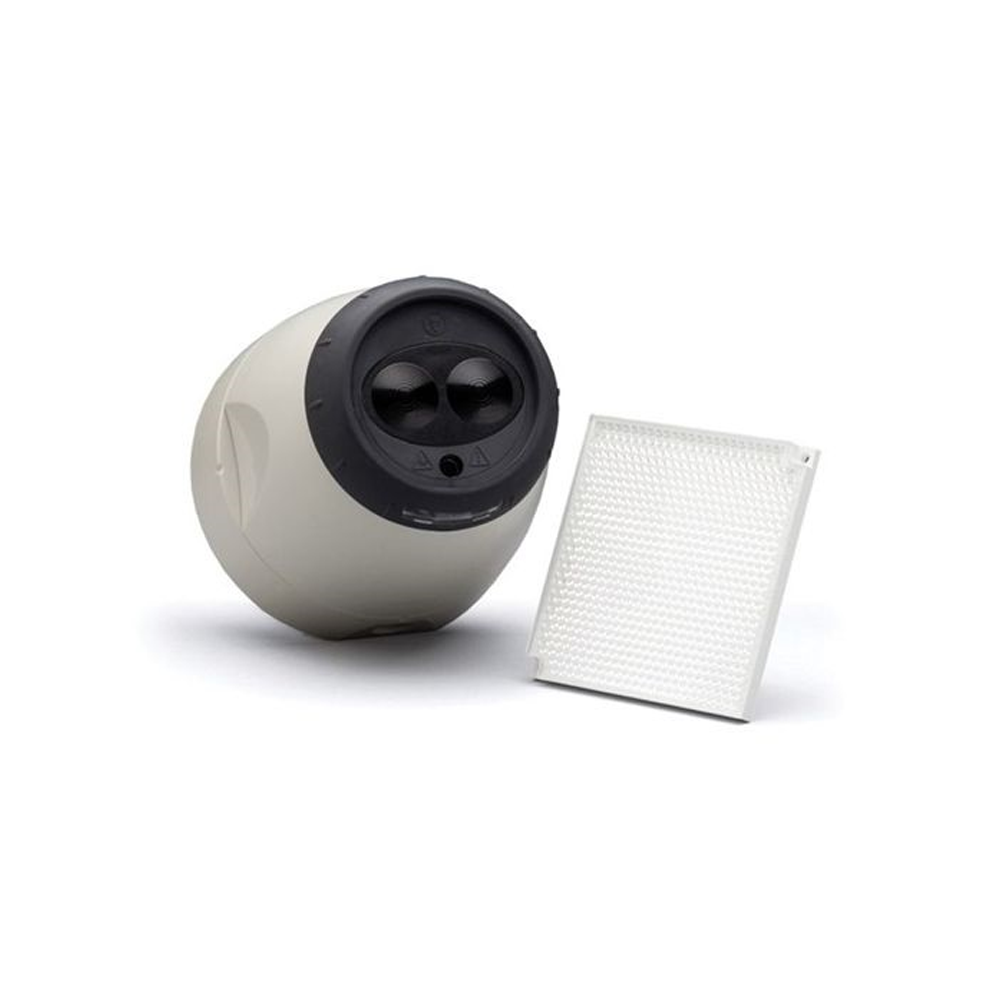

The SPACE AGE FE-5000-031 5000 Beam Detector represents advanced optical fire detection technology for large commercial and industrial environments where traditional point detectors are impractical. Designed for expansive spaces such as warehouses, manufacturing facilities, atrium areas, and high-ceiling commercial installations, this beam detector provides comprehensive fire surveillance across extended horizontal distances.
Engineered with precision auto-alignment capabilities, the 5000 Series beam detector eliminates complex manual calibration processes. Its integrated prism technology enables reliable signal reflection and detection, ensuring consistent performance in challenging architectural environments. Professionals can deploy this detector confidently in complex spatial configurations where traditional point detection would require numerous individual units.
Key Features
- Advanced auto-alignment mechanism reduces installation time and potential calibration errors
- Extended detection range up to 330 feet (100 meters) with exceptional optical sensitivity
- Compatible with most addressable fire alarm control panels and conventional zone configurations
- Built-in drift compensation technology maintains consistent detection performance
- NFPA 72 compliant design with UL 268 listing for commercial fire detection applications
- Ruggedized optical system resists environmental contaminants like dust and ambient light interference
Specifications
- Operating Voltage: 15-32 VDC
- Current Draw: Standby 250µA, Alarm 45mA
- Detection Wavelength: Infrared spectrum
- Environmental Rating: Indoor use, IP54 rated
- Temperature Range: 32°F to 120°F (0°C to 49°C)
- Humidity Tolerance: 10% – 93% non-condensing
Professional fire alarm technicians will appreciate the 5000 Beam Detector’s versatility across multiple commercial installation scenarios. Typical deployment environments include large retail spaces, distribution centers, manufacturing facilities, airport terminals, convention centers, and other expansive indoor environments requiring comprehensive fire detection coverage.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 7.75 × 6.75 × 5.75 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
