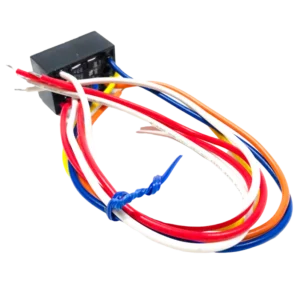

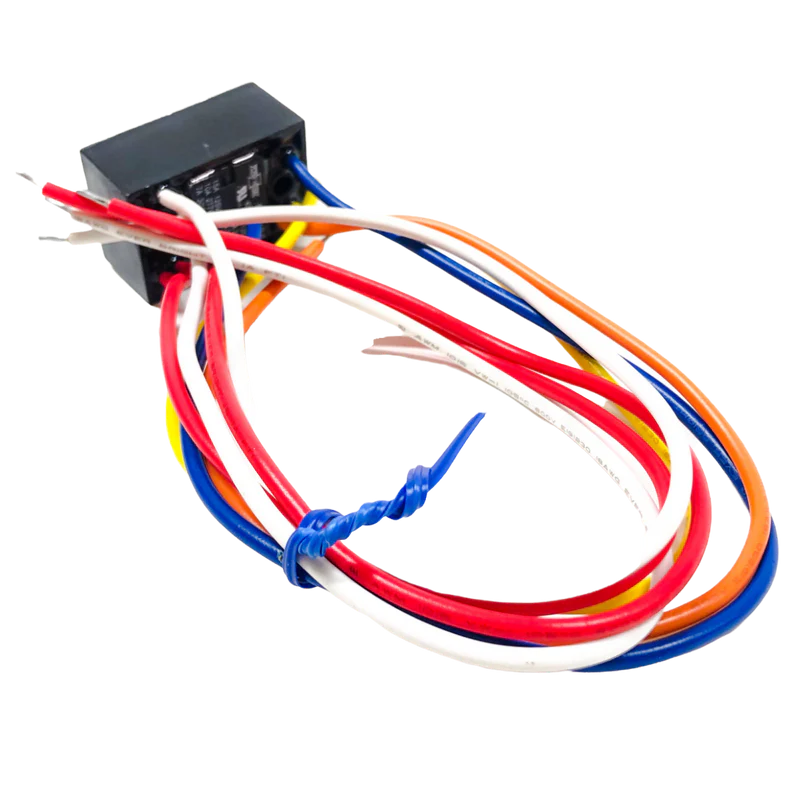

The Space Age SSU-PAM-4 is an encapsulated DC control relay module. It provides one SPDT (Form “C”) contact. The coil accepts any input from 9 to 40 VDC. As a result, one part covers a wide DC voltage range.
Space Age SSU-PAM-4 relay features
First, the sealed housing shields the relay from dust and moisture. In addition, a red LED lights when the relay is activated. The module connects through five 12-inch flying leads. Therefore, wiring it into a panel is simple.
Also, the contacts switch 10 amps for general loads. Furthermore, the wide 9-40 VDC coil tolerates voltage drop on long runs. This suits HVAC shutdown, door release, and auxiliary control.
Specifications
- Contacts: one SPDT (Form “C”), continuous duty
- Coil voltage: 9-40 VDC (pull-in 9VDC, drop-out 2VDC)
- Coil current: 20mA @ 9-40 VDC
- Contact rating: 10A resistive @ 120VAC; 10A resistive @ 28VDC
- Motor load: 1/3 HP @ 120VAC (N/O); 480 VA pilot duty @ 120VAC
- Leads: five 12-inch, 600V rated
- Status indicator: red LED (on = activated)
- Listings: UL Listed (UL864, UUKL), C-UL, CSFM, CE, RoHS
Applications
Installers choose the SSU-PAM-4 when a dry contact must track a DC output. For example, it can drive fan shutdown or signal a controller. Finally, the encapsulated design resists harsh conditions.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 6 × 6 × 4 in |
| Condition | New |
| Manufacturers | Securitron |
| Part Type | Replacement Part |
