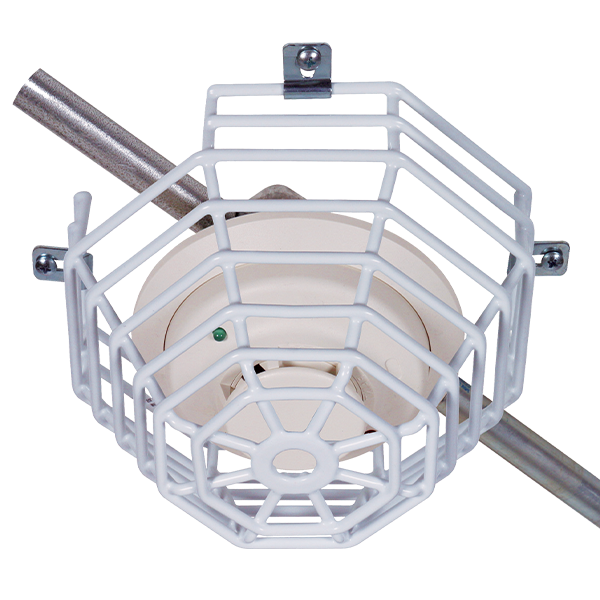

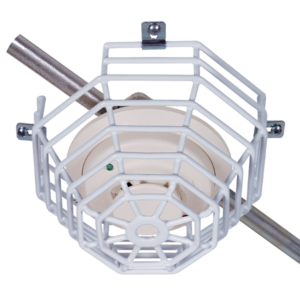

The STI STI-9605 is a Steel Web Stopper® for mini smoke detectors in surface-mount installations. This UL Listed wire guard prevents misuse, tampering, and accidental damage. However, smoke still reaches the detector freely through the open web.
STI based the patented design (D368,670) on a spider’s web. Specifically, a web-like octagon of 9-gauge steel wire makes the cage extremely difficult to break. In addition, a corrosion-resistant polyester coating protects the steel.
STI STI-9605 Key Features
- 9-gauge steel wire with corrosion-resistant polyester coating
- Patented web-like octagon design resists severe abuse
- Deeper cage clears surface-mounted mini smoke detectors
- UL Listed (S3504) for any UL Listed low profile detector — no sensitivity adjustment required
- Meets UL 268; CSFM Approved (7300-1416:0100); MEA Approved (49-00-E)
- Suitable for controlled environments from -40°F to 212°F (not for outdoor use)
- May be spray painted once before installation to match décor
- Three-year guarantee against breakage in normal use
Specifications
Dimensions are 7.125 in H x 7.125 in W x 4.5 in D. Also, the guard removes simply for routine detector servicing.
Related Models and Accessories
For flush-mounted mini detectors, choose the STI-9604 instead. Alternatively, the STI-9605-SS offers uncoated 304 stainless steel. Optional KIT-82 tamper-resistant screws and the KIT-19038 spanner bit are available.
Order the STI-9605 from Life Safety Consultants
Life Safety Consultants stocks STI protective covers and enclosures for contractors, facility managers, and fire alarm technicians nationwide. To order the STI-9605, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com for application help.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|
