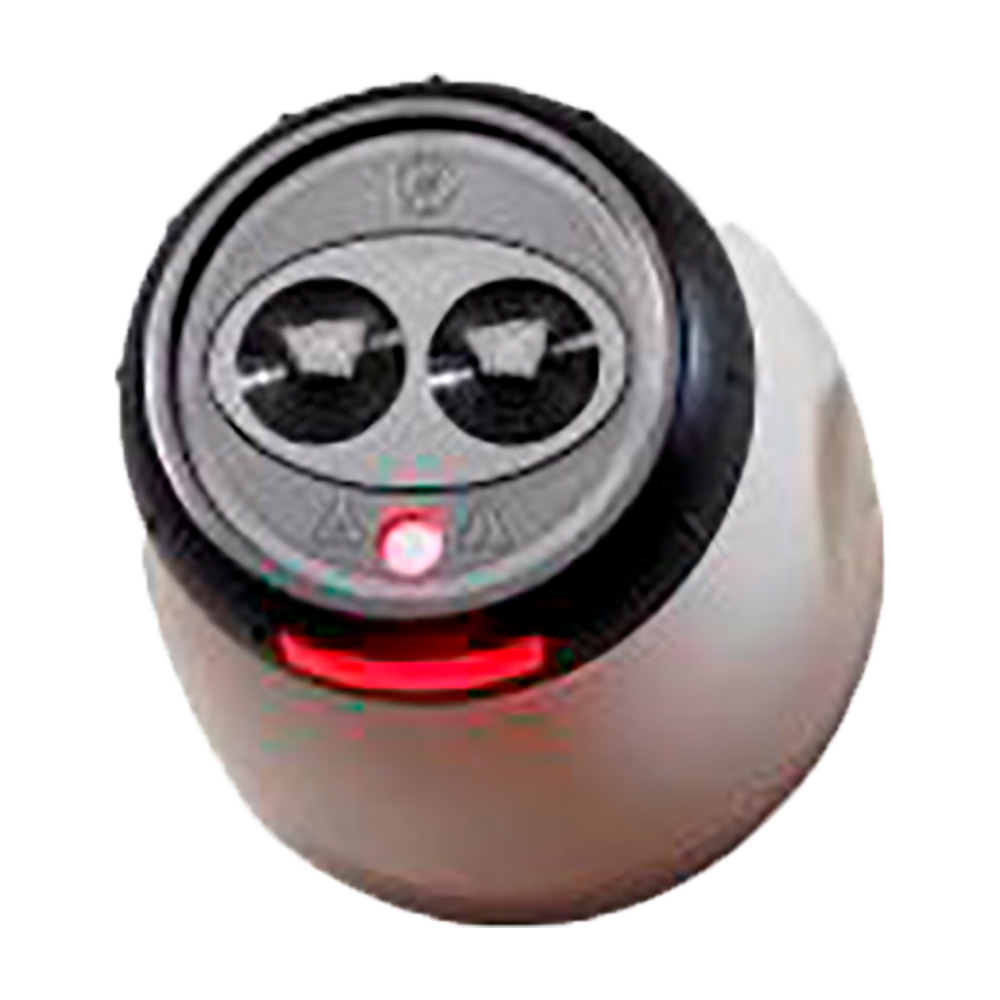

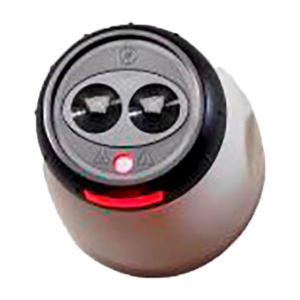

The Simplex 4098-9019 Address Beam Detector System represents advanced optical smoke detection technology engineered for large commercial and industrial spaces with expansive ceiling heights. Designed specifically for challenging detection environments like warehouses, aircraft hangars, manufacturing facilities, and atrium spaces, this intelligent beam detector provides comprehensive fire surveillance across extended horizontal distances up to 330 feet with exceptional accuracy and reliability.
Utilizing sophisticated infrared optical technology, the beam detector analyzes smoke particle interference patterns across a projected light beam, enabling precise fire event detection while minimizing false alarm potential. The addressable design allows seamless integration with Simplex intelligent fire alarm control panels, providing precise location identification and comprehensive system monitoring.
Key Features
- Addressable communication protocol compatible with Simplex intelligent fire alarm networks
- Extended detection range from 30 to 330 feet with field-adjustable sensitivity settings
- Automatic self-alignment and drift compensation technology minimizes maintenance requirements
- Environmental compensation algorithms reduce nuisance alarm triggers from dust, humidity, and ambient light variations
- UL 268 listed for commercial fire detection applications
- NFPA 72 compliant sensing technology with comprehensive diagnostic reporting
Specifications
- Operating Voltage: 15-32 VDC
- Standby Current: 250 µA typical
- Alarm Current: 6 mA maximum
- Temperature Range: 32°F to 122°F (0°C to 50°C)
- Relative Humidity: 10% to 93% non-condensing
- Mounting: Wall or ceiling surface mounting with adjustable mounting bracket
Ideal for commercial installations requiring comprehensive fire detection in large open spaces, the Simplex 4098-9019 Address Beam Detector System provides professional-grade performance across diverse architectural environments. Compatible with modern addressable fire alarm infrastructures and engineered to meet stringent industry standards, this detector offers reliable, intelligent smoke detection for critical facility protection.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 5.8 lbs |
|---|---|
| Dimensions | 15.8 × 11.8 × 6.7 in |
| Condition | New |
| Manufacturers | Simplex |
| Part Type | Sensor |
